Installing connecting bracket to radiator
- Replace O-ring.
Parts
: O-ring

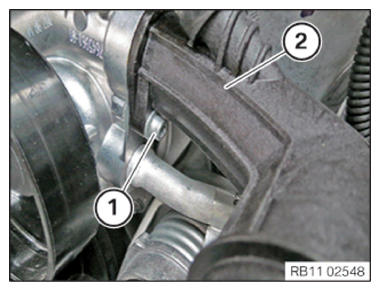

- Connect connecting bracket (2).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Connecting bracket on coolant pump (plastic) |
| M6 |
Tightening torque |
10 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
