Engine - Cylinder Head - Repair (G30) (2 Of 4)
>>
11 12 Cylinder Head With Lid
>>
11 12 106 Removing and installing right cylinder head (M550i xDrive, 2018-2019)
>>
Preparing special tool 8.5 mm
Preparing special tool 8.5 mm
Clamp special tool
0 493 997 (11 8 350)
in a vice.

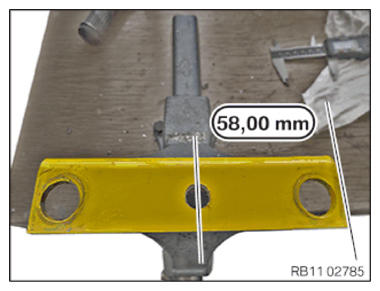

Mark out with a tape measure 58 mm. And drill a 8.5 mm hole (see graphic).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
