Installing the special tool for cylinder head 1-4

NOTE: TECHNICAL INFORMATION
The work must be performed with vehicle care to prevent component damage.

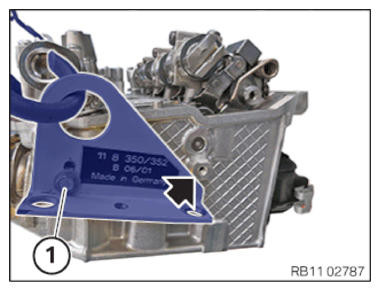

• Position the special tool 0 493 997 (11 8 350)  so that it can support itself on the cylinder head (arrow).
• Secure the special tool 0 493 997 (11 8 350)  on the rear cylinder head with bolt (1).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Special tool to cylinder head 1 to 4
M6x15	Tightening torque	10 Nm

• Attach the special tool 0 490 567 (11 0 020)  on the lifting eye and on the special tool 0 493 997 (11 8 350)  .

NOTE: TECHNICAL INFORMATION
The work must be performed with vehicle care to prevent component damage.

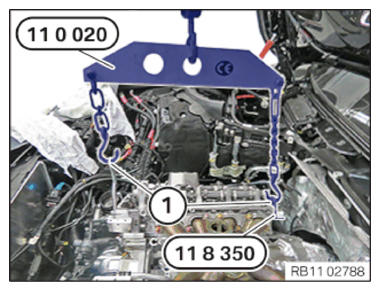

• Attach the special tool 0 490 567 (11 0 020)  on the retaining tab (1) and on the special tool 0 493 997 (11 8 350)  .

Courtesy of BMW OF NORTH AMERICA, INC.
