Engine - Cylinder Head - Repair (G30) (2 Of 4)
>>
11 12 Cylinder Head With Lid
>>
11 12 106 Removing and installing right cylinder head (M550i xDrive, 2018-2019)
>>
Remove cylinder head cylinder 1 to 4
Remove cylinder head cylinder 1 to 4
Loosen screws in the order (1) to (10).
Remove cylinder head.

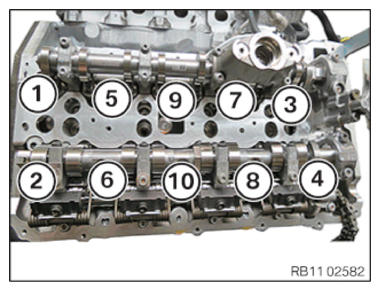

Fig 1: Cylinder Head Screws Loosening Sequence
Courtesy of BMW OF NORTH AMERICA, INC.
