Position the tensioning rail and the guide rail on the cylinder head (cylinders 1 to 4)

NOTE: TECHNICAL INFORMATION
The work must be performed with vehicle care to prevent component damage.

• Note that the tensioning and guide rails may break.

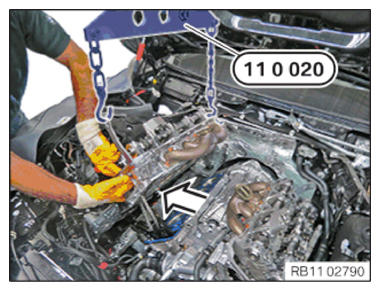

• Raise the timing chain and press the guide rail in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.
