Installing oil filler neck

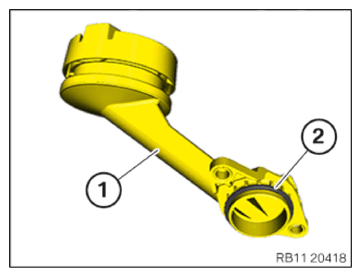

• Replace the sealing ring (2) on the oil filler neck (1).

  Parts:  Sealing ring

• Coat the sealing ring (2) with the recommended engine oil.

Courtesy of BMW OF NORTH AMERICA, INC.

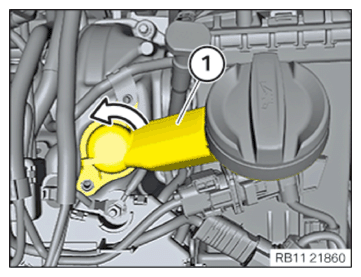

• Position oil filler neck (1).
• Turn oil filler neck (1) about 15° counterclockwise.

Courtesy of BMW OF NORTH AMERICA, INC.

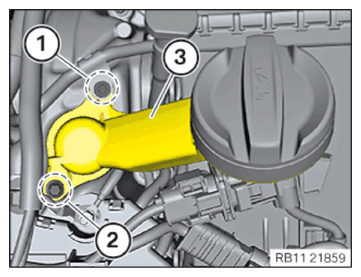

• Tighten screw (2) on the oil filler neck (3).

• Tighten screw (1) on the oil filler neck (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING CLEAN AIR PIPE OF CYLINDER BANK 1 .
• Refer to CONNECTING THE RIGHT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER .
• Refer to INSTALLING LEFT INTAKE FILTER HOUSING WITH LEFT FRONT-END STRUT .
• Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING WITH THE RIGHT FRONT-END STRUT .
• Refer to INSTALLING THE COVER OF THE RIGHT DME CONTROL UNIT .
• Refer to INSTALLING ACOUSTIC COVER .
