Install the engine bridge
Preliminary work:
- Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING THE RESONATOR WITH THE TOP CLEAN AIR PIPE .
- Refer to REMOVING THE COVER ON LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT
- Refer to REMOVING THE FRONT LEFT WHEEL .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT
- Refer to REMOVING THE REAR SECTION OF THE WHEEL ARCH COVER ON THE FRONT LEFT AND RIGHT .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to REMOVING THE STIFFENING PLATE .

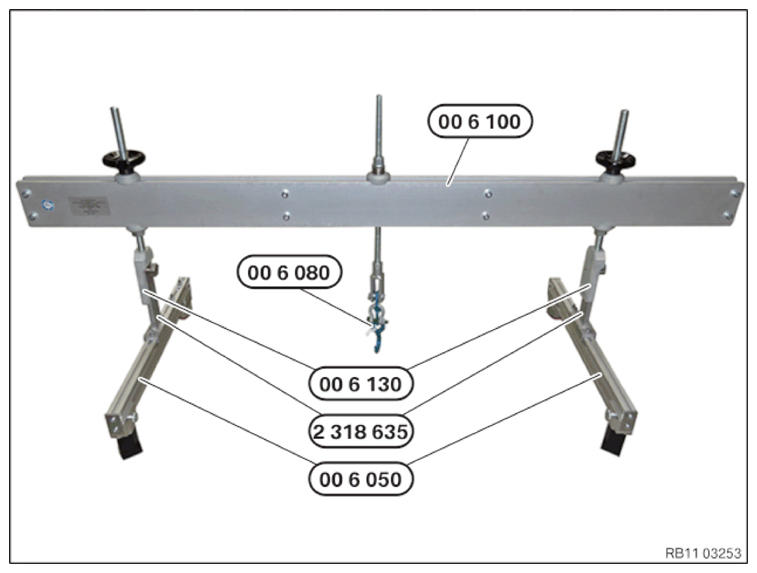

Prepared engine bridge
CAUTION:
Components connected to the engine joint or cross member.
Injury hazard!
Injury hazard!
- Check lifting eyes and engine mounting brackets for damage, e.g. cracks.
- Attach the component to correctly mounted engine joints or cross members only.
- Only lift the component, do not shift it forwards, backwards or in transverse direction.
NOTE:
Perform the steps on the right and left side.
- Loosen the rivet (1).
- Remove the lateral hood seal (2) from the shock tower.
- Release the screws (1) left and right.

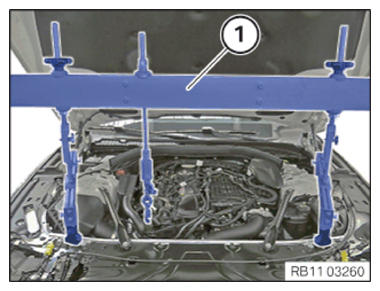

- Carefully position engine bridge (1) with help from an assistant.

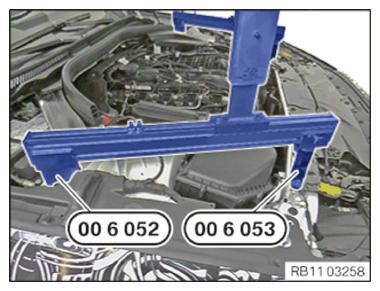

- Make sure that the special tool 0 496 438 (00 6 053) from the set of special tools 0 496 430 (00 6 050), left, rests correctly on the lock support.
- Make sure that special tool 0 496 437 (00 6 052)
from the set of special tools 0 496 430 (00 6 050),
left, rests correctly on the shock tower.

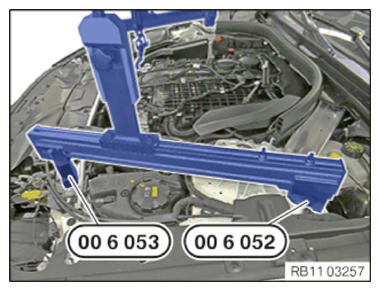

- Make sure that the special tool 0 496 438 (00 6 053) from the set of special tools 0 496 430 (00 6 050), right, rests correctly on the lock support.
- Make sure that special tool 0 496 437 (00 6 052)
from the set of special tools 0 496 430 (00 6 050),
right, rests correctly on the shock tower.

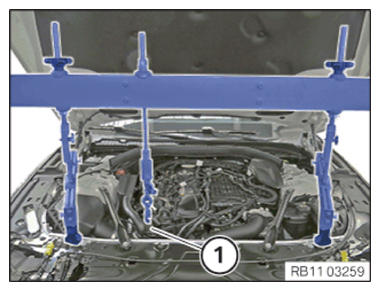

- By shifting the engine bridge on the profile strips of the special tool 0 496 430 (00 6 050), align it above the engine mounting bracket (1) and screw in place.
- Align hook 0 496 733 (00 6 080) above engine mounting bracket (1).
- Connect hook 0 496 733 (00 6 080) to engine mounting bracket (1).
