Move the engine to the mounting orientation
Preliminary work:
- Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING TOP CLEAN AIR PIPE .
- Refer to REMOVING THE COVER ON LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT
- Refer to REMOVING THE SEAL FOR THE HOOD REAR .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING THE COWL COVER .
- Refer to REMOVING TRAILING LINK AT SPRING BOLT .
- Refer to REMOVING THE COWL UPPER PART IN THE CENTER .
- Refer to REMOVING ACOUSTIC COVER AT REAR .
- Refer to REMOVING ALL IGNITION COILS
- Refer to REMOVING FUEL DELIVERY LINE .
- Refer to REMOVING THE FRONT THRUST FIELD .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to REMOVING THE STIFFENING PLATE .
- Refer to REMOVING THE FRONT LEFT WHEEL .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .
- Refer to REMOVING THE REAR SECTION OF THE FRONT LEFT WHEEL ARCH COVER .
- Refer to REMOVING THE RIGHT AND LEFT SIDE HOOD SEALS .
- Refer to REMOVING THE UNIVERSAL JOINT ON THE STEERING GEAR .

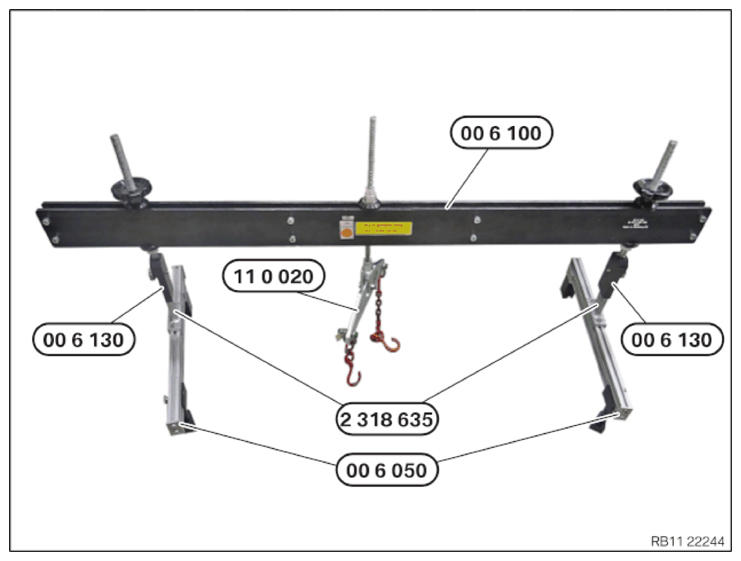

Prepared engine bridge
CAUTION:
Components connected to the engine joint or cross member.
Injury hazard!
Injury hazard!
- Check lifting eyes and engine mounting brackets for damage, e.g. cracks.
- Attach the component to correctly mounted engine joints or cross members only.
- Only lift the component, do not shift it forwards, backwards or in transverse direction.
- Guide in and position special tool 2 459 012 on cylinder head.
- Tighten the screws (1) of special tool 2 459012. TIGHTENING TORQUES SPECIFICATION
Special tool to cylinder head M8 Tightening torque 21.5 Nm - Carefully
position engine bridge (1) with help from an auxiliary person.

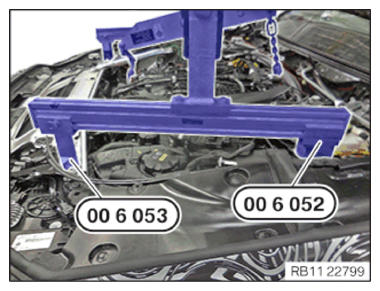

- Make sure that special tool 0 496 438 (00 6 053) on the left is correctly on the cross connection.

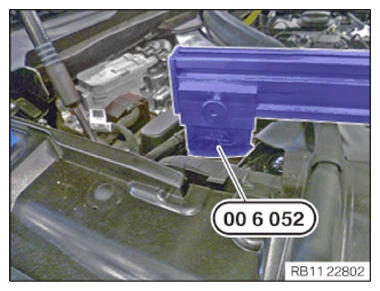

- Make sure that special tool 0 496 437 (00 6 052) on the left
is correctly positioned on the spring strut dome.

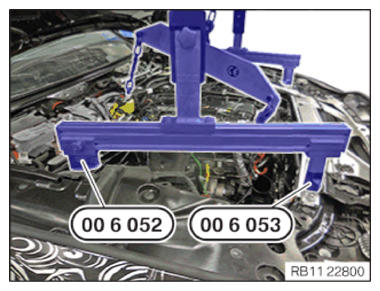

- Make sure that special tool 0 496 438 (00 6 053) on the right lies correctly on the cross connection.
- Make sure that special tool 0 496 437 (00 6 052) on the right
is correctly positioned on the spring strut dome.
- Align the engine bridge by moving it on the profile strips of the special tool 0 496 430 (00 6 050) above the engine mounting bracket and screw it down.
- Connect special tool 0 490 567 (11 0 020) to special tool 2 459 012.
- Connect the special tool 0 490 567 (11 0 020)
above the engine mounting bracket (1) at the rear.
- Check whether the special tool 0 496 438 (00 6 053) on the right
is correctly positioned on the cross connection.
- Check whether the special tool 0 496 438 (00 6 053) on the right
is correctly positioned on the spring strut dome.
- Check whether the special tool 0 496 438 (00 6 053) on the left
is correctly positioned on the cross connection.
- Check whether the special tool 0 496 438 (00 6 053) on the right
is correctly positioned on the spring strut dome.
- Keep all the standard tools ready.
Number Description 1 Standard torque wrench 2 Swivelling extension 3 External Torx E14 - Position the standard tool (1).
- Release screw (1) of the left
engine mount with standard tool (2) sideways.
- Release screw (1) on the right
engine mount from the top with a standard tool.
- Raise the engine by turning the special tool 2 361 506 (00 6 103)
(spindle) by 10 mm.
