Install engine ventilation line
NOTE:
TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.
Make sure that the connections are locked correctly. The locks must engage audibly.

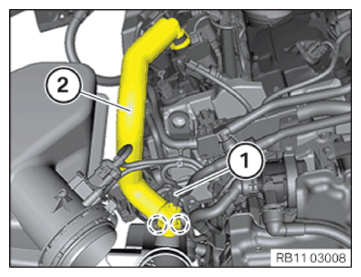

- Connect the engine ventilation line (2) to the clean air pipe.
- Connect connector (1).
- Connect the engine ventilation line (2) to the top of the cylinder head cover.
Follow-up Work
- Refer to INSTALL RESONATOR .
- Refer to INSTALL ACOUSTIC COVER .
