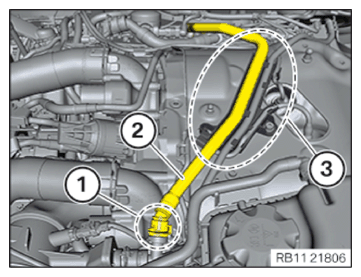

Installing all the engine ventilation lines

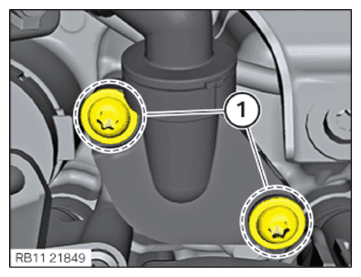

- Feed in and position the engine ventilation line.
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Engine ventilation line screw Tightening torque 9.3 Nm - Slightly press down the wiring harness in the area (1).
- Insert and position the engine ventilation line (3).

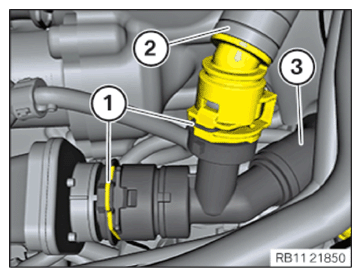

- Position the intake pipe (2).
- Lock the retaining clips (1).
The retaining clips (1) must audibly engage.
- Feed in the intake pipe (2) and position.
- Lock the retaining clip (1).
The retaining clip (1) must engage audibly.

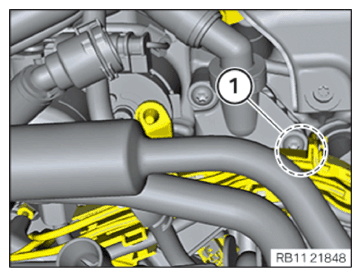

- Clip in the intake pipe (2) into the holder in the area (3).
- Lock the retaining clip (1).
The retaining clip (1) must engage audibly.
- Feed in and install the engine ventilation line (2).
- Tighten the screws (1).TIGHTENING TORQUES SPECIFICATION
Engine ventilation line screw Tightening torque 9.3 Nm - Position the wiring harness (2).
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Wiring harness on the cylinder head cover M6x16 screw Tightening torque 10 Nm Nut M6 Tightening torque 10 Nm - Guide in and install cover (3).

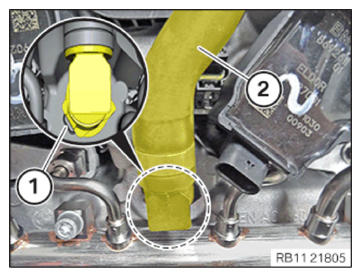

- Position engine ventilation line (2).
- Connect and lock retaining clip (1).
Follow-up work
- Refer to INSTALLING COOLANT EXPANSION TANK .
- Refer to INSTALLING THE CONTROL UNIT BRACKET FOR CYLINDERS 5 TO 8 .
- Refer to INSTALL CLEAN AIR PIPE, TOP .
- Refer to INSTALLING CONTROL UNIT HOLDER FOR CYLINDERS 1 TO 4 .
- Refer to INSTALLING THE COVER OF THE RIGHT DME CONTROL UNIT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE COVER OF THE LEFT DME CONTROL UNIT .
- Refer to INSTALLING THE COVER OF THE RIGHT DME CONTROL UNIT .
- Refer to CONNECTING NEGATIVE BATTERY CABLE .
