Remove oil sump

WARNING: Car may slip off the vehicle hoist where components are supported.
Danger! Immobilization period-threatening injuries!

Secure the vehicle hoist against lowering and lifting.

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: RAISE THE VEHICLE USING A VEHICLE LIFT

WARNING: Car may slip off the vehicle hoist if the weight is distributed unevenly.
Danger! Immobilization period-threatening injuries!

Ensure there is a specific weight compensation on the car.

WARNING: Heavy component falling down or tipping.
Danger! Immobilization period-threatening injuries!

Before lowering or removing the front axle: Secure the engine in the installation position.
For additional information see: SECURING ENGINE IN INSTALLATION POSITION

WARNING: Working on 12 V electrical system.
Risk of short circuits! Risk of fire!

Make sure that there is no charger connected to the jump start terminal in the engine compartment.
Detach battery ground lead from battery.
For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.

NOTE: RISK OF DAMAGE
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS).
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults.

Detach battery terminal from battery pole by carefully shifting to and fro. Do not pry off using a tool.

Preliminary work

Refer to BRING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to REMOVE THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT
Refer to REMOVE THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
Refer to REMOVE THE RIGHT AND LEFT SIDE HOOD SEALS .
Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING INTAKE SILENCER HOUSING .
Refer to REMOVE TOP CLEAN AIR PIPE .
Refer to REMOVING THE COVER ON LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
Refer to REMOVING THE OIL FILLER CAP (540i 2017-2020) , or RELEASING THE OIL FILTER COVER (540i 2017-2020) .
Refer to REMOVE THE FRONT LEFT AND RIGHT WHEELS .
Refer to REMOVE THE REAR SECTION OF THE WHEEL ARCH COVER ON THE FRONT LEFT AND RIGHT .
Refer to REMOVE THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT
Refer to REMOVE THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
Refer to REMOVING REAR UNDERBODY PROTECTION .
Refer to RELEASING THE OIL DRAIN PLUG (540i 2017-2020) , or RELEASING THE OIL DRAIN PLUG (540i 2021-2022) .
Refer to TIGHTENING THE OIL DRAIN PLUG (540i 2017-2020) , or TIGHTENING THE OIL DRAIN PLUG (540i 2021-2022) .
Refer to REMOVE THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
Refer to REMOVING THE UNIVERSAL JOINT ON THE STEERING GEAR .
Refer to MOVE THE ENGINE TO THE INSTALLATION POSITION .
Refer to REMOVE THE REINFORCEMENT STRUT FROM THE ENGINE MOUNT ON THE LEFT AND RIGHT .
Refer to DETACHING THE WIRING HARNESS OF THE EPS FROM THE FRONT AXLE SUPPORT
Refer to IF INSTALLED: REMOVE THE SILENCER OF THE STATIONARY HEATING (ADDITIONAL WORK FRU NO.: 31 11 905) .
Refer to REMOVING LEFT AND RIGHT BRAKE VENTILATION DUCT .
Refer to LOOSENING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT FROM THE ANTI-ROLL BAR .
Refer to RELEASING THE FRONT LEFT AND RIGHT BRAKE CALIPERS .
Refer to IF INSTALLED: DISCONNECT THE PLUG CONNECTIONS OF THE ACTIVE STABILIZER
Refer to PREPARE THE MOBILE TABLE LIFT .
Refer to POSITIONING THE MOBILE LIFTING TABLE .
Refer to DETACH THE TOP LEFT AND RIGHT WISHBONE FROM THE SWIVEL BEARING .
Refer to DETACH THE SPRING STRUT ON THE WISHBONE ON THE BOTTOM LEFT AND RIGHT .
Refer to RELEASE THE SCREWS ON THE LEFT AND RIGHT FRONT AXLE SUPPORT .
Refer to COMPLETELY REMOVING FRONT AXLE .
Refer to REMOVE THE ACOUSTIC COVER OF THE OIL SUMP .
Refer to REMOVING STARTER MOTOR

NOTE: RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.

Adhere to the utmost cleanliness.
Protect components from contamination e.g. by covering.
Close off line connections with seal plugs.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

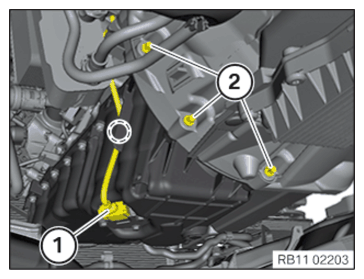

Unlock plug connection (1) and disconnect.
Unclip cable in the marked area.
Loosen screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

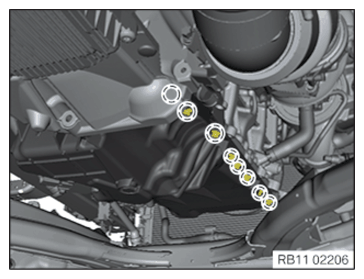

Remove all screws (marks).

Courtesy of BMW OF NORTH AMERICA, INC.

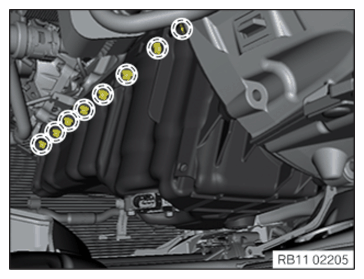

Remove all screws (marks).

Courtesy of BMW OF NORTH AMERICA, INC.

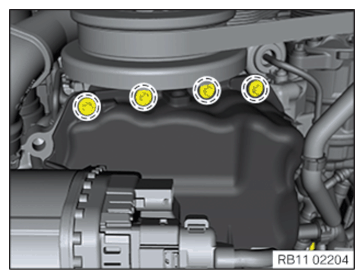

Remove all screws (marks).

Courtesy of BMW OF NORTH AMERICA, INC.

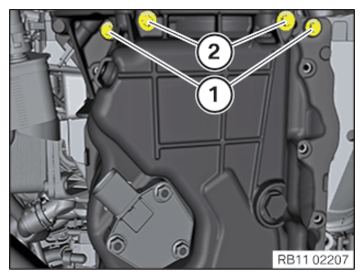

Loosen screws (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Increased force may be necessary during disassembly because the component is bonded with liquid sealing compound.

Loosen oil sump (1) in the marked areas with the screwdrivers (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Increased force may be necessary during disassembly because the component is bonded with liquid sealing compound.

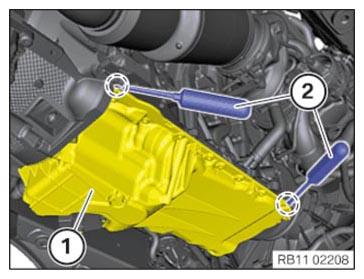

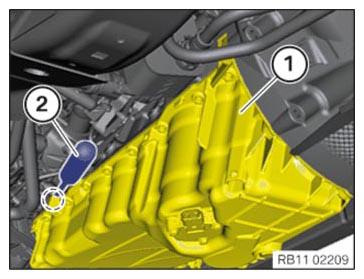

Loosen oil sump (1) in the marked area with screwdriver (2).

Courtesy of BMW OF NORTH AMERICA, INC.

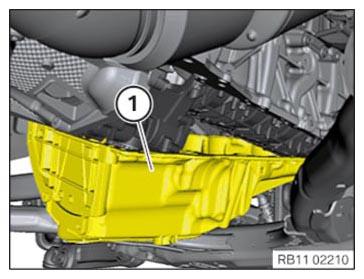

Remove oil sump (1) from the bottom rear.
