Installing mid-range speaker in rear door

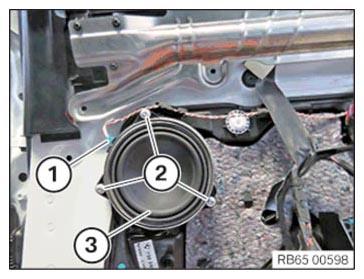

- Correctly position the mid-range speaker (3).
- Tighten down screws (2).
TIGHTENING TORQUES SPECIFICATION
| Loudspeakers on the door/trim panel | ||
| Screw | Tightening torque | 2 Nm |
- Connect connector (1).
Follow-up Work
- Install rear door TRIM PANEL .
- Attach the door handle COVER .
