Fresh Air Door Motor -V438-, Removing And Installing: Installing
Install in reverse order of removal and note the following:

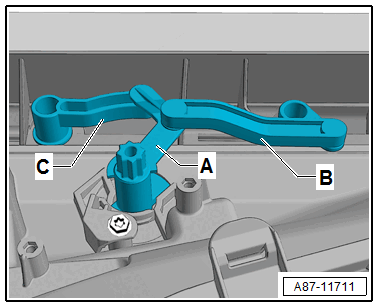

-- Check the fasteners and lever to the doors -A-, -B-, and -C- for proper assembly and ease of movement.
CAUTION:
There is a risk of damaging the adjustment motor electronics when turning the mount.
- Turn the adjustment motor mount only when the wiring harness is connected.
- Install the mount carefully and slowly by hand.
- The actuator mount does not have a stop. It turns constantly if the actuator is activated. Therefore, it should not be activated when the actuator is removed.
- Check the connection between the actuator mount and the shaft; there must not be any play.
-- Check the shaft -A- and the mount -B- for the actuator -C-. They must be properly aligned so that they can be joined.
-- Perform a basic setting for the A/C system. Refer to GENERAL INFORMATION AND PROCEDURES - ACTUATORS, REMOVING AND INSTALLING .
Tightening Specification
