OVERVIEW - DRIVETRAIN - VEHICLES WITH ALL-WHEEL DRIVE CLUTCH >>quattro ultra<<

Name and ratio

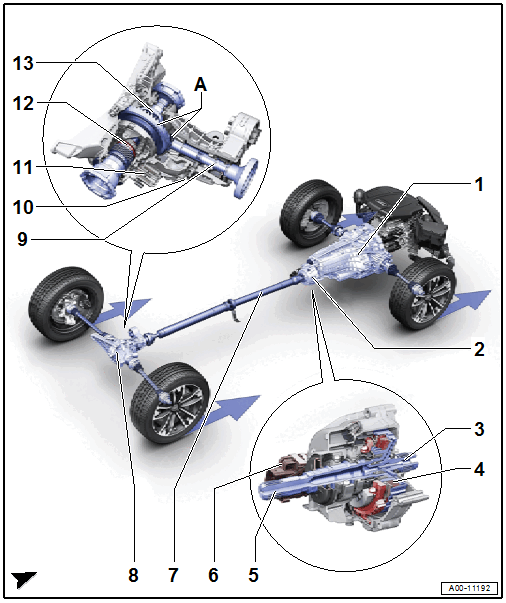

Fig 1: Drivetrain Components Location (AWD)

Courtesy of AUDI OF AMERICA, LLC

1. Transmission
   • Removing and installing
   • Refer to Transmission, Removing and Installing .
2. All-Wheel Drive Clutch
   • Refer to OVERVIEW - ALL-WHEEL DRIVE CLUTCH
3. Input Shaft All-Wheel Drive Clutch
4. Multi-Disc Clutch
5. All-Wheel Drive Clutch Output Shaft
6. All-Wheel Drive Control Module -J492-

   Integrated in the All-Wheel Drive Control Module -- :

   • All-Wheel Drive Clutch Actuator -V622-
   • All-Wheel Drive Clutch Position Sensor -G969-
   • Removing and Installing. Refer to CONTROL MODULE, REMOVING AND INSTALLING .
7. Driveshaft
   • Overview. Refer to OVERVIEW - DRIVESHAFT .
   • Removing and Installing. Refer to DRIVESHAFT, REMOVING AND INSTALLING .
8. Rear Final Drive
   • Overview. Refer to OVERVIEW - FINAL DRIVE .
   • Removing and Installing. Refer to FINAL DRIVE .
9. Rear Pinion
10. Driveshaft Speed Sensor -G970-
    • Removing and Installing. Refer to Driveshaft Speed Sensor -G970-, REMOVING AND INSTALLING, 0B0 "quattro ultra", 09R "quattro ultra" .
11. All-Wheel Drive Clutch Actuator 2 -V623-
    • Removing and Installing. Refer to All-Wheel Drive Clutch Actuator 2 -V623-, REMOVING AND INSTALLING, 0B0 "quattro ultra", 09R "quattro ultra" .
12. Dog Clutch
13. Rear Differential

A -  Drivetrain (Pinion and Ring Gear) on Rear Final Drive
