Overview - Lock Carrier

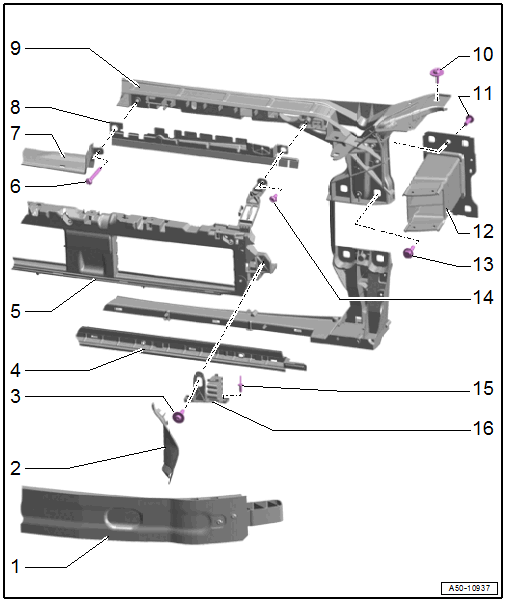

Fig 1: Exploded View Of Lock Carrier

Courtesy of AUDI OF AMERICA, LLC

Impact Member
- Overview. Refer to OVERVIEW - IMPACT MEMBER .
Air Duct
- Clipped into the bumper cover bracket
Bolt
- 8 Nm
Lower Air Guide
- For the radiator
Bumper Cover Bracket
- Removing and Installing. Refer to BUMPER COVER BRACKET, REMOVING AND INSTALLING .
Bolt
- Tightening specification. Refer to OVERVIEW - AIR FILTER HOUSING .
Air Duct
- For the air filter housing
- Clean off any salt and dirt
Upper Air Duct
- For the radiator
Lock Carrier
- Removing and Installing. Refer to LOCK CARRIER, REMOVING AND INSTALLING .
Bolt
- 10 Nm
Bolt
- 14 Nm
- Quantity: 2
Mount
- For impact member
Bolt
- Tightening specification -item 6- OVERVIEW - IMPACT MEMBER - Bolt
Bolt
- 5 Nm
Pop Rivet
- Quantity: 2
Spring Element
- For the bumper cover bracket
- Removing and Installing. Refer to SPRING ELEMENT FOR BUMPER COVER BRACKET, REMOVING AND INSTALLING .
- Adjusting. Refer to HEIGHT, ADJUSTING USING SPRING ELEMENT .

Spring Element for Bumper Cover Bracket, Market-Specific Version

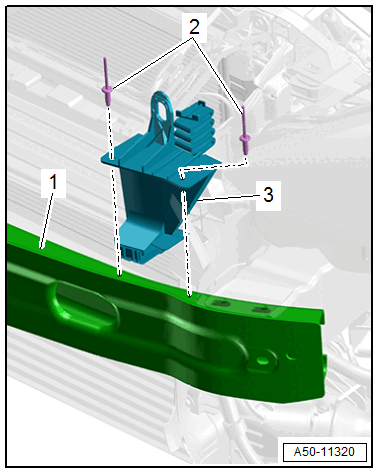

Fig 2: Spring Element For Bumper Cover Bracket

Courtesy of AUDI OF AMERICA, LLC

Impact Member
Pop Rivet: Quantity 2
Support with support for bumper cover bracket. Refer to SPRING ELEMENT FOR BUMPER COVER BRACKET, REMOVING AND INSTALLING for removing and installing and HEIGHT, ADJUSTING USING SPRING ELEMENT for adjusting.

Retaining Pin for Front Noise Insulation, A5 Cabriolet

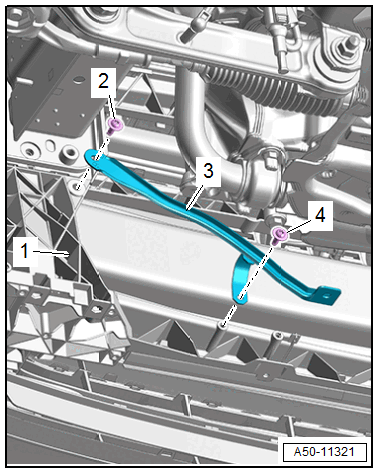

Fig 3: Retaining Pin for Front Noise Insulation, A5 Cabriolet

Courtesy of AUDI OF AMERICA, LLC
