Side and Length Adjustment at Hinge

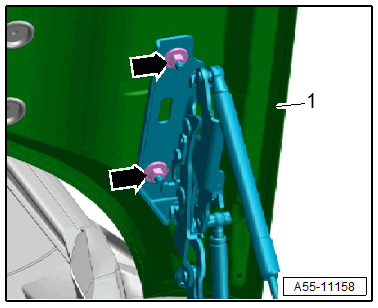

GWWA55-11158Courtesy of AUDI OF AMERICA, LLC

-- Loosen the nuts -arrows-.

-- Adjust the hood -1- from side to side and lengthwise.

-- Tighten the nuts.

Tightening Specifications
