Height Adjustment on Hinge

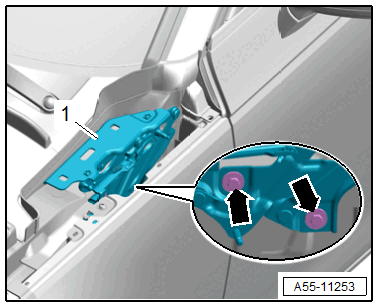

GWWA55-11253Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolts -arrows-.

-- Adjust the height of the hinge -1-.

-- Tighten the bolts.

Tightening Specifications
