Height, Adjusting Using Adjusting Buffer

Special tools and workshop equipment required

• Adjustment Gauge :3371

• Adjustment dimensions. Refer to ADJUSTMENT DIMENSIONS .

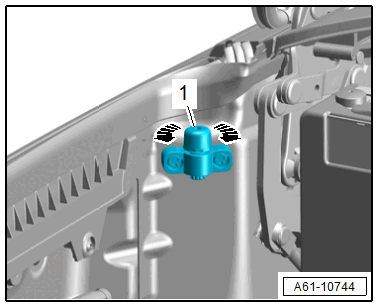

-- Turn the adjusting buffer -1- in direction of -arrows- until the closed convertible top compartment cover makes contact.

Courtesy of AUDI OF AMERICA, LLC

• The convertible top compartment cover must lie on the cover side stop with light pretension.
• Make sure the convertible top compartment cover closes without any play by pushing or pulling on the sides.

-- Repeat the adjustment if necessary.
