Component Location Overview - Luggage Compartment Trim Panels, AVANT

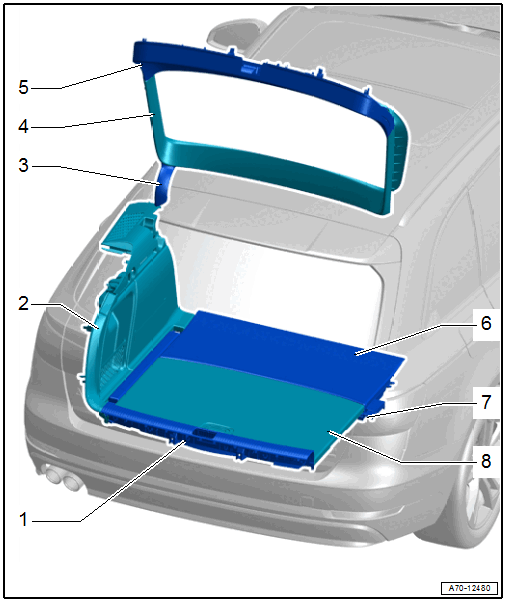

Fig 1: Luggage Compartment Trim Panels, Avant

1. Lock Carrier Trim Panel
   • Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL, AVANT .
2. Luggage Compartment Side Trim Panel
   • Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL, AVANT .
3. Rear Lid Hinge Trim Panel
   • Clip onto the rear lid hinge
4. Rear Lid Upper Trim Panel
   • Overview. Refer to OVERVIEW - REAR LID TRIM PANEL, AVANT .
5. Rear Lid Lower Trim Panel
   • Overview. Refer to OVERVIEW - REAR LID TRIM PANEL, AVANT .
6. Front Luggage Compartment Floor
   • Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR .
7. Luggage Compartment Floor Support
   • Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL, AVANT .
8. Rear Luggage Compartment Floor
   • Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR .
