Height Adjustment, Checking, A5 Coupe

Special tools and workshop equipment required

• Adhesive Tape

If the door window causes wind noise, the height adjustment must be checked.

• Adjustment dimensions. Refer to FRONT DOOR WINDOW, ADJUSTING .

Procedure

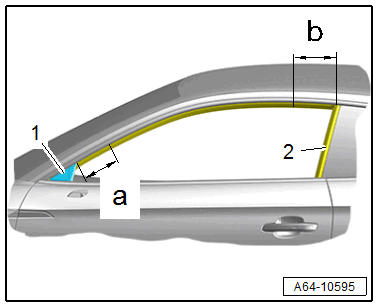

-- Determine the measuring point on the door window:

• Dimension -a- = 100 mm, measured from the A-pillar trim. Refer to ADJUSTMENT DIMENSION, A5 COUPE - Dimension -a- = 100 mm, measured from the A-pillar trim .

  Courtesy of AUDI OF AMERICA, LLC

• Dimension -b- = 100 mm measured from the center of the inner door seal. Refer to ADJUSTMENT DIMENSION, A5 COUPE - Dimension -f- = 100 mm measured from the center of the inner door seal .

-- Apply the adhesive tape to the measured points -1 and 2- on the door window.

Courtesy of AUDI OF AMERICA, LLC

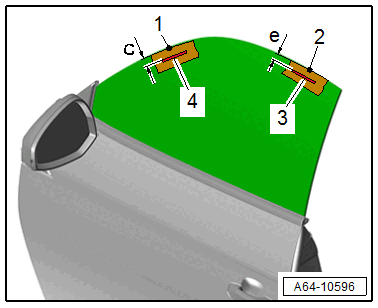

-- On the adhesive tape, mark reference lines -3 and 4- from the door window upper edge.

• Dimension -c-. Refer to ADJUSTMENT DIMENSION, A5 COUPE - Gap dimension -c- = 4.9 mm .
• Dimension -e-. Refer to ADJUSTMENT DIMENSION, A5 COUPE - Gap dimension -e- = 3.3 mm .

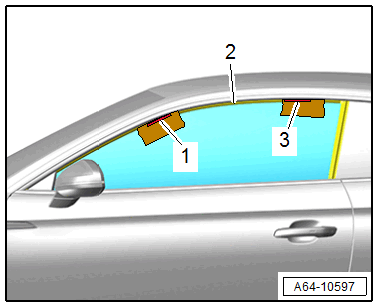

-- Close the door.

• The reference lines -1 and 3- on the adhesive tape must align with the inner door seal lower edge -2-.

  Courtesy of AUDI OF AMERICA, LLC

TIP:

The measurement of the window depth can be performed using the : T10391  at the measuring points.

-- Adjust the door window again if the first height adjustment is not OK. Refer to HEIGHT ADJUSTMENT .
