Remove temperature sensor water/oil
Preliminary work
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to BRING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- Refer to REMOVING THE COVER ON LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
- Refer to REMOVE THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVE THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT
- Refer to REMOVING THE MOUNT OF THE HOOD SEAL .
- Refer to REMOVE THE FRONT LEFT AND RIGHT WHEELS .
- Refer to REMOVE THE REAR SECTION OF THE WHEEL ARCH COVER ON THE FRONT LEFT AND RIGHT .
- Refer to MOVE THE ENGINE TO THE INSTALLATION POSITION
- Refer to REMOVE THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
- Refer to REMOVING THE STIFFENING PLATE .
- Refer to REMOVE THE REINFORCEMENT STRUT FROM THE ENGINE MOUNT ON THE LEFT AND RIGHT .
- Refer to DETACHING THE WIRING HARNESS OF THE EPS FROM THE FRONT AXLE SUPPORT
- Refer to REMOVING LEFT AND RIGHT BRAKE VENTILATION DUCT .
- Refer to REMOVE THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
- Refer to IF INSTALLED: REMOVE THE SILENCER OF THE STATIONARY HEATING (ADDITIONAL WORK FRU NO.: 31 11 905) .
- Refer to LOOSENING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT FROM THE ANTI-ROLL BAR .
- Refer to RELEASE THE LEFT AND RIGHT OUTPUT SHAFT FROM THE WHEEL BEARING .
- Refer to RELEASE THE BRAKE HOSE AT THE FRONT LEFT AND RIGHT .
- Refer to REMOVE THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT
- Refer to IF INSTALLED: DISCONNECT THE PLUG CONNECTIONS OF THE ACTIVE STABILIZER
- Refer to REMOVE UNIVERSAL JOINT .
- Refer to RELEASING THE THERMOSTAT OR TRANSMISSION OIL COOLER LINE FROM THE FRONT SUBFRAME .
- Refer to DETACHING COOLANT HOSES FROM THE FRONT AXLE SUPPORT
- Refer to PREPARE THE MOBILE TABLE LIFT .
- Refer to POSITIONING THE MOBILE LIFTING TABLE .
- Refer to DETACH THE TOP LEFT AND RIGHT WISHBONE FROM THE SWIVEL BEARING .
- Refer to RELEASING THE RIGHT AND LEFT SPRING STRUT HOLDER FROM THE BOTTOM WISHBONE .
- Refer to UNSCREW THE BOLTS ON THE FRONT AXLE SUPPORT .
- Refer to LOWER FRONT AXLE SUPPORT .
- Refer to REMOVE RIGHT ENGINE SUPPORT BRACKET (ALL-WHEEL DRIVE VEHICLE) .

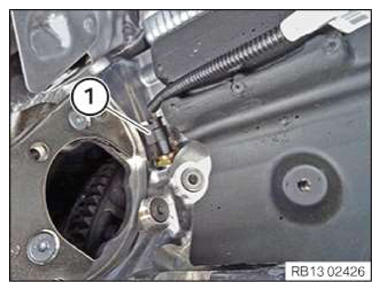

- Unlock plug connection (1) and disconnect.

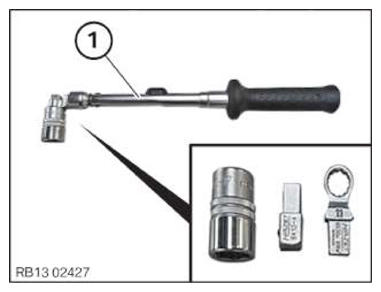

- Prepare the tool (1) as shown.

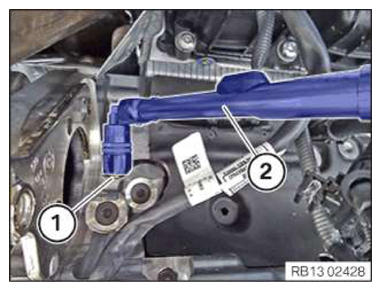

- Release water/oil temperature sensor (1) with the prepared tool (2).

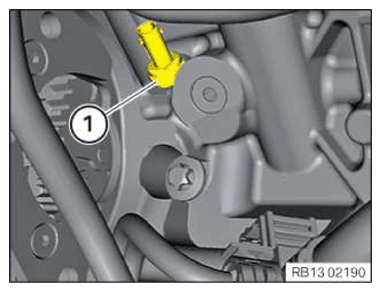

- Feed out and remove the water/oil temperature sensor (1).
