Removing the steering gear
NOTE:
TECHNICAL INFORMATION
In a warranty case, you must always provide a fault memory printout with the defective part, even if the fault memory does not contain an entry.
In a warranty case, you must always provide a fault memory printout with the defective part, even if the fault memory does not contain an entry.
NOTE:
TECHNICAL INFORMATION
Perform WHEEL ALIGNMENT after installation.
Perform WHEEL ALIGNMENT after installation.
NOTE:
TECHNICAL INFORMATION
Vehicle programing/coding must be performed after installation.
For additional information see: 61 00... PROGRAMING/ENCODING control unit(s)
Vehicle programing/coding must be performed after installation.
For additional information see: 61 00... PROGRAMING/ENCODING control unit(s)
Preliminary work
- DEACTIVATE the 48 v electrical system.
- Disconnect all battery GROUND LEADS .
- Remove the front left and right WHEELS .
- Remove the front UNDERBODY PROTECTION/FRONT THRUST FIELD .
- Remove the UNDERBODY PROTECTION of the steering gear and thrust field respectively.
- Remove the STIFFENING PLATE .
- Remove both TRACK END RODS
- If installed: release the ACTIVE STABILIZER (additional work for ARS).
- Remove UNIVERSAL JOINT .

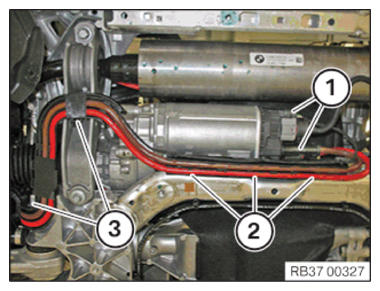

- Disconnect connector (1).
Carefully unclip cable duct (2) from front axle support with screwdriver.
Carefully unclip wiring harness mounting (3) and lay wiring harness to one side.

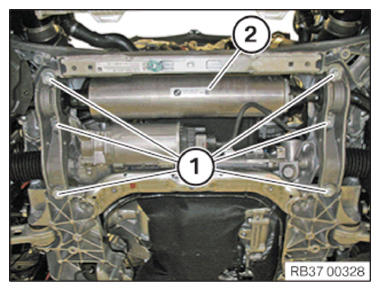

- Loosen screws (1) from stabilizer mount and remove active stabilizer (2) at front axle support.
- Undo screws (1) and remove steering gear (2) toward the bottom.
