Install the DSC control unit
NOTE:
TECHNICAL INFORMATION
Maintain conditions of absolute cleanliness.
Maintain conditions of absolute cleanliness.

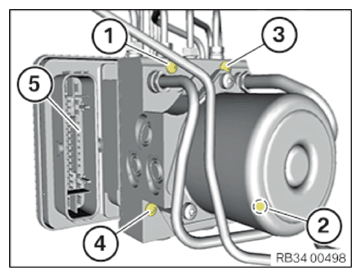

- Connect DSC control unit (5) carefully to hydraulic unit.
- Replace screws (1)
to (4).
Parts: Screws
- Tighten screws (1) to (4) in this order in stages.
TIGHTENING TORQUES SPECIFICATION
| DSC control unit on hydraulic unit | ||
| Screw Replace screws. |
Screw in screws and evenly tighten crosswise. 1. Tightening torque |
1.5 Nm |
| 2. Tightening torque | 2.5 Nm | |
| Position the 3rd tightening torque | 3.5 Nm | |
Follow-up work
- Install HYDRAULIC UNIT .
- Install the sides UNDERSHIELD .
- Install the rear section of the front wheel arch COVER .
- Clean the CONTACT SURFACES between the brake disc and the wheel rim.
- Attach the front left WHEEL .
- Remove the brake pedal TENSIONER .
- Connect the brake fluid BLEEDER UNIT .
- Flush and vent the rear axle BRAKE CIRCUIT .
- Flush and bleed the front axle BRAKE CIRCUIT (brake high).
- Disconnect the brake fluid BLEEDER UNIT .
- DSC unit start-up/driving dynamics sensor adjustment/control unit PROGRAMING
