Install automatic transmission (GA8HP75HZ)

NOTE: RISK OF DAMAGE
Damage to the transmission.
Damage to the transmission due to unapproved transmission oil.

Use only the approved TRANSMISSION OIL .
Check the transmission OIL LEVEL after completing the repair.

NOTE: TECHNICAL INFORMATION
After completion of the work, program the control unit for the electronic gearbox control (EGS).

NOTE: RISK OF DAMAGE
Damage of the flywheel and automatic transmission.
A non-horizontal fit during the removal and installation of the automatic transmission can lead to damage on the automatic transmission or flywheel.

Align the automatic transmission completely horizontal to the engine during the removal and installation.
Check for correct alignment before tightening the transmission bolts.

Courtesy of BMW OF NORTH AMERICA, INC.

Align the automatic transmission horizontal to the engine before installation.
Check for correct fit of lining sleeves (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Transmission flange-mount.
Join the bolts (arrows) and hand-tighten.

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the special tool 0 494 213 (24 2 390) in arrow direction from the sealing sleeve (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Slide the connector (1) on and turn it to lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Install the line (2).
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Install the connector (2).
Replace the screw (1).
Parts: Screw
Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert and install the holder (4).
Replace screws (3).
Parts: Screws
Hand-tighten the screws (3).
Replace the screw (2).
Parts: Screw

Tighten down screw (2).

TIGHTENING TORQUES SPECIFICATION

Catalytic converter to holder
M8 Replace screw.	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Replace nut (1).
Parts: Nut

Tighten nut (1).

TIGHTENING TORQUES SPECIFICATION

Catalytic converter to holder
M8 Replace nut.	Tightening torque	19 Nm

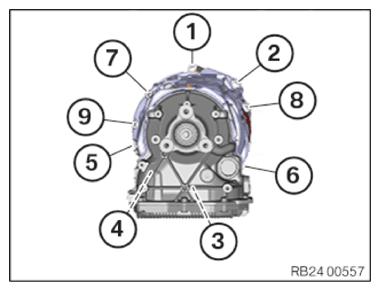

Tighten screws in the order (1) to (9).

TIGHTENING TORQUES SPECIFICATION

Transmission to engine
M8	Tightening torque	19 Nm
M12	Tightening torque	66 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install transmission oil lines (2).
Replace the screw (1).
Parts: Screw
Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install transmission oil lines (2).
Replace the screw (1).
Parts: Screw
Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Insert and install the holder (2).
Replace screws (1).
Parts: Screws
Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Position the high-voltage cable (1) on the holder (3) in the direction of the arrow.
Insert and install the holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Position holder (2).
Replace the screw (1).
Parts: Screw
Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock the clamps (1).
Remove special tool 5 A29 F40 from high-voltage connector (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in and install the high-voltage connector (2).
Hand-tighten the bolts (1) crosswise up to the high-voltage connector (2).
Tighten screws (1) crosswise.

Courtesy of BMW OF NORTH AMERICA, INC.
Install holder (3).
Replace the bolts (1) and the nut (2).
Parts: Bolts, nut

Tighten the screws (1) and the nut (2).

TIGHTENING TORQUES SPECIFICATION

Front pipe/front silencer/gasoline particulate filter to the transmission holder
M8 Replace nut	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: DANGER
Potential equalization in high-voltage system.
Mortal hazard if the potential equalization screw connection is not correct!

Observe the safety requirements for the potential equalization screw connection.
Clean contact faces and have then checked by a second person.
Tighten the screws/nuts for potential equalization with torque; have a second person check the torque.
Correct execution of these tasks must be documented in the vehicle records by both persons.

Courtesy of BMW OF NORTH AMERICA, INC.

Install the ground strap (2).
Replace nut (1).
Parts: Nut

Tighten nut (1).

TIGHTENING TORQUES SPECIFICATION

Ground strap to transmission or body
M8	Tightening torque	19 Nm

NOTE: DANGER
Potential equalization in high-voltage system.
Mortal hazard if the potential equalization screw connection is not correct!

Observe the safety requirements for the potential equalization screw connection.
Clean contact faces and have then checked by a second person.
Tighten the screws/nuts for potential equalization with torque; have a second person check the torque.
Correct execution of these tasks must be documented in the vehicle records by both persons.

Courtesy of BMW OF NORTH AMERICA, INC.

Install the ground strap (2) on the transmission mounting bracket (4).
Replace the screw (1).
Parts: Screw

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Ground strap to transmission or body
M8	Tightening torque	19 Nm

Clip the positive battery cable (2) into the clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Install holder (2).
Replace screws (1).
Parts: Screws

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Retaining plates for vehicle underbody cover
Sheet metal nut/plastic nut Replace nuts.	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Install holder (4).
Replace screws (3).
Parts: Screws

Tighten down screws (3).

TIGHTENING TORQUES SPECIFICATION

Retaining plates for vehicle underbody cover
Sheet metal nut/plastic nut Replace nuts.	Tightening torque	3 Nm

Follow-up work

Fasten the (partially removed) PROP SHAFT
Install transmission CROSS MEMBER .
Install the HEAT SHIELDS .
Install the complete EXHAUST SYSTEM .
If installed: install the right and left TORSION STRUT where required.
Install the rear axle COVER .
Install the tunnel connecting SUPPORTS
Reconnect all battery GROUND LEADS .
Check/top up the automatic transmission OIL LEVEL .
Install the transmission side UNDERBODY PLANKING .
Install rear UNDERBODY PROTECTION .
Activate HIGH-VOLTAGE SYSTEM .
Install in right flap luggage compartment TRIM PANEL .
