Removing the radial shaft seal for the torque converter (GA8HP50Z, GA8HP51Z)

Preliminary work

Deactivate the 48 v ELECTRICAL SYSTEM .
Disconnect all battery GROUND LEADS .
If the active stabilizer is installed: remove fan COWL .
Remove rear UNDERBODY PROTECTION .
Remove the center UNDERBODY PROTECTION .
Remove the transmission side UNDERBODY PLANKING
Remove STARTER MOTOR .
Remove the tunnel connecting SUPPORT .
If installed: remove the right and left TORSION STRUT where required.
Remove complete EXHAUST SYSTEM .
Remove the HEAT SHIELDS .
Remove the RETAINING PLATES
Remove transmission CROSS-MEMBER .
Partially loosen the PROP SHAFT
Remove AUTOMATIC TRANSMISSION (GA8HP51Z).
Remove TORQUE CONVERTER

CAUTION: Materials harmful to health.
Contact with fluids harmful to health!

Note and follow safety instructions on containers.
Conduct all work in appropriate personal protective equipment only.

NOTE: RISK OF DAMAGE
Damage to the transmission.
Damage to the transmission due to unapproved transmission oil.

Use only the approved TRANSMISSION OIL .
Check the transmission OIL LEVEL after completing the repair.

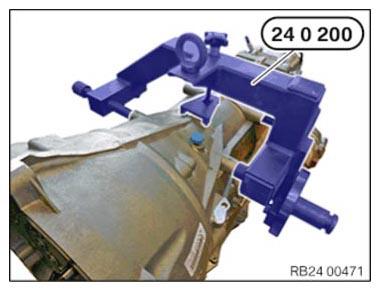

Fasten the transmission using special tools 0 495 446 (24 0 200) and 2 449 398 onto the special tool 0 495 187 (00 2 300).

Courtesy of BMW OF NORTH AMERICA, INC.
Pull out the radial shaft seal (1) with the special tools 0 496 716 (24 1 420) and 0 493 321 (13 5 250) in arrow direction.
