Installing the engine encapsulation on exhaust side

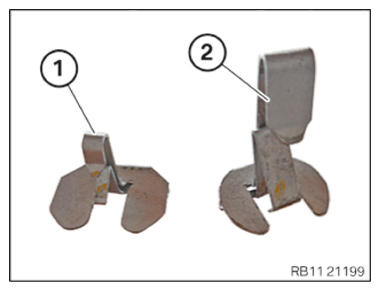

• Replace the clips (1) and (2).

  Parts  : Clips

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check the engine encapsulation (1) for damage, if necessary, replace engine encapsulation (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in engine encapsulation (1) and position.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Fasten the clips (1) with a standard screwdriver (2) in arrow direction  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING EXHAUST TURBOCHARGER .
• Refer to INSTALLING THE OIL RETURN LINE FOR THE EXHAUST TURBOCHARGER .
• Refer to INSTALL THE COOLANT RETURN LINE FOR THE EXHAUST TURBOCHARGER .
• Refer to INSTALLING COOLANT FEED LINE FOR EXHAUST TURBOCHARGER .
• Refer to INSTALL CATALYTIC CONVERTER .
• Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
• Refer to INSTALL THE CONNECTING SUPPORTS ON THE TUNNEL .
• Refer to INSTALLING LAMBDA OXYGEN SENSOR .
• Refer to INSTALL THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
• Refer to INSTALL CHARGE AIR LINE .
• Refer to INSTALL CLEAN AIR PIPE .
• Refer to INSTALL RESONATOR .
• Refer to INSTALLING ACOUSTIC COVER AT REAR .
• Refer to INSTALL THE FRONT HOOD SEAL AT THE REAR .
• Refer to FILL THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT
• Refer to VENT THE HIGH-TEMPERATURE COOLANT SYSTEM .
• Refer to CHECK THE HIGH-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
• Refer to INSTALL ACOUSTIC COVER .
• Refer to INSTALL THE THRUST FIELD .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to CHECK ENGINE OIL LEVEL .
• Refer to TAKE HOOD OUT OF THE SERVICE POSITION .
