Installing the vibration damper
NOTE:
RISK OF DAMAGE
Radial shaft seal damage.
When fitting the vibration damper, the radial shaft seal may be damaged.
Radial shaft seal damage.
When fitting the vibration damper, the radial shaft seal may be damaged.
- It is imperative to use the special tool when fitting the vibration damper.
NOTE:
TECHNICAL INFORMATION
When removing/refitting or replacing the vibration damper, the radial shaft seal must also be replaceed.
When removing/refitting or replacing the vibration damper, the radial shaft seal must also be replaceed.
- Clean the sealing surface (1) from oil and contamination.
- Screw in the special tool 2 466 729 and hand tighten it on the crankshaft.

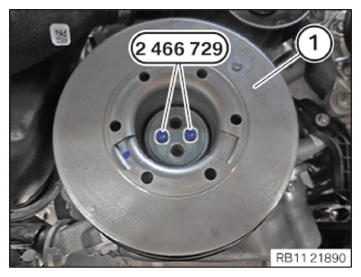

- Insert and install the vibration damper (1) on the special tool 2 466 729
.
- Replace the bolts (arrows).
Parts: Screws

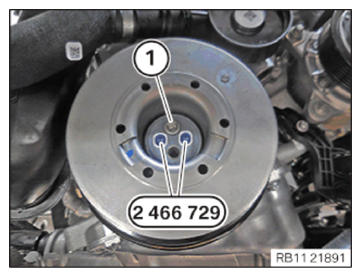

- Hand-tighten the bolt (1).
- Guide the special tool 2 466 729
out and remove.
- Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATION
| Vibration damper to crankshaft | ||
| M10 x 65 Replace screws. |
Joining torque Angle of rotation |
40 Nm 120° |
- Loosen screw (2).
- Slide the counter support with the bolt (2) down until the teeth (3) are no longer engaged in the gearing of the flywheel (4).
- Release the screw (1) and feed out and remove special tool 0 496 595 (11 6 130) .
Follow-up work
- Refer to INSTALLING STARTER MOTOR .
- Refer to INSTALLING THE DRIVE BELT FOR THE STARTER MOTOR GENERATOR .
- Refer to INSTALL CHARGE AIR LINE .
- Refer to INSTALL BOTTOM CLEAN AIR PIPE .
- Refer to INSTALL CLEAN AIR PIPE, TOP .
- Refer to INSTALLING THE INTAKE FILTER HOUSING (TENSION STRUT REMOVED ON SHOCK TOWER) .
- Refer to INSTALL FAN COWL .
- Refer to INSTALL THE REAR TOP CROSS CONNECTION .
- Refer to INSTALL FRONT CROSS CONNECTION .
- Refer to INSTALLING BOTH FRONT-END STRUTS
- Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP
- Refer to CONNECTING NEGATIVE BATTERY CABLE .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALL THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to INSTALL THE CENTER UNDERBODY PROTECTION .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
- Refer to CHECK ENGINE OIL LEVEL .
