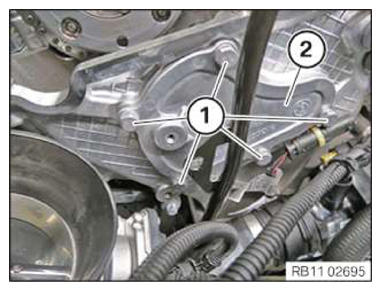

Install timing case cover at top right

• Position the timing case cover (2).
• Secure screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE RIGHT-HAND CHARGE AIR COOLER .
• Refer to FIX CHARGE AIR HOSE TO THE EXHAUST GAS TURBOCHARGER ON CYLINDERS 1 TO 4 .
• Refer to INSTALLING THE RIGHT UNFILTERED-AIR DUCT .
• Refer to CONNECTING THE COOLANT HOSE TO THE AUXILIARY COOLANT PUMP .
• Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING BOTH FRONT-END STRUTS
• Refer to INSTALLING INTAKE FILTER HOUSING .
• Refer to FILL THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to INSTALL ACOUSTIC COVER .
