Installing the electric coolant pump for the charge air cooler and the air conditioning condenser

• Position electric coolant pump (3).
• Connect and lock the connector (2).
• Make sure the connector (2) engages audibly.
• Connect and lock coolant line (1).
• Make sure that the coolant line (1) engages audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

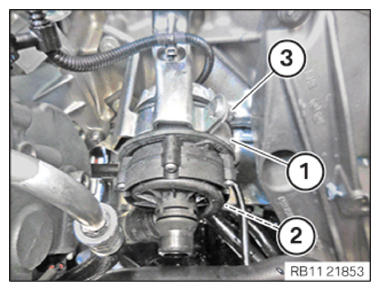

• Insert and install the retainer (1).
• Make sure the retainer (1) is correctly  positioned on the bracket (2).
• Tighten nut (3).
  TIGHTENING TORQUES SPECIFICATION



  Electric coolant pump to holder
  M6	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

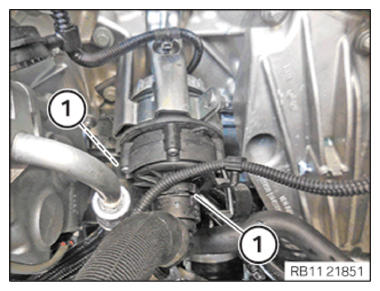

• Connect and lock coolant line (1).
• Make sure that the coolant line (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING HEAT MANAGEMENT MODULE .
• Refer to INSTALLING THE INTAKE PLENUM .
• Refer to INSTALLING THE TANK VENT VALVE .
• Refer to INSTALLING THE CONTROL UNIT HOLDER .
• Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
• Refer to INSTALLING THE DME CONTROL UNIT .
• Refer to INSTALLING THE RESONATOR WITH THE TOP CLEAN AIR PIPE .
• Refer to INSTALLING THE INTAKE FILTER HOUSING (TENSION STRUT REMOVED ON SHOCK TOWER) .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING FRONT CROSS CONNECTION .
• Refer to INSTALLING BOTH FRONT-END STRUTS
• Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP
• Refer to CONNECTING NEGATIVE BATTERY CABLE .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to FILLING AND VENT THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to FILLING AND VENT THE LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD
• Refer to INSTALLING ACOUSTIC COVER AT REAR .
• Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to TAKE HOOD OUT OF THE SERVICE POSITION .
