Installing automatic transmission (all-wheel drive vehicle) (GA8HP50Z)

NOTE: RISK OF DAMAGE
Damage to the transmission.
Damage to the transmission due to unapproved transmission oil.

Use only the approved TRANSMISSION OIL .
Check the transmission OIL LEVEL after completing the repair.

NOTE: TECHNICAL INFORMATION
After completion of the work, program the control unit for the electronic gearbox control (EGS).

Checking installation position of torque converter

NOTE: RISK OF DAMAGE
Damage to the automatic transmission/impeller.
When disconnecting the engine and transmission, the torque converter can become loose! Failure to observe the correct installation positions of the torque converter may lead to damage to the impeller driver.

Make sure that the torque converter is in the correct installation position before installing the automatic transmission.

Courtesy of BMW OF NORTH AMERICA, INC.

Check the installation dimension between the contact surfaces (1) and the outer edge (2) of the threaded hole of the torque converter with the special tool 0 490 189 (00 2 550) .
- See REPAIR INSTRUCTIONS - Removing and installing/replacing torque converter

NOTE: RISK OF DAMAGE
Damage of the flywheel and automatic transmission.
A non-horizontal fit during the removal and installation of the automatic transmission can lead to damage on the automatic transmission or flywheel.

Align the automatic transmission completely horizontal to the engine during the removal and installation.
Check for correct alignment before tightening the transmission bolts.

Courtesy of BMW OF NORTH AMERICA, INC.

Before installing the automatic transmission, horizontally align it to the engine.
Checking lining sleeves
Check the fitting sleeves (1) for correct seating and damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Flange-mount transmission

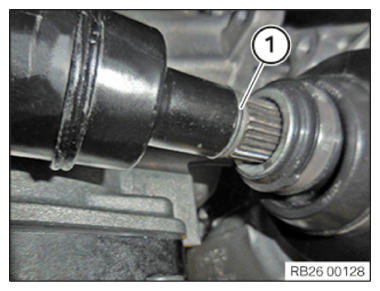

Replace O-ring (1).
Before installing the front prop shaft in the transfer box (VTG), replace the O-ring.

Parts: O-ring

Courtesy of BMW OF NORTH AMERICA, INC.
Position the front prop shaft (1) on the output flange (3) of the transfer box (VTG).
Align the front prop shaft (1) with mark (2) and (4).
Push front prop shaft (1) to stop in output flange (3) of transfer box.

Courtesy of BMW OF NORTH AMERICA, INC.

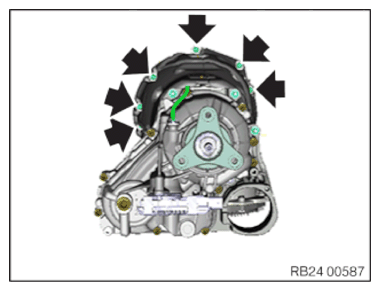

Flange-mount the transmission on the transfer box (VTG).
Rotate the torque converter until the bore in the torque converter is flush with the bore in the drive plate.
Fit the transmission bolts (arrows) and apply lightly.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the special tool from the torque converter

Release screw (1) and screw (2).
Remove the special tool 0 494 451 (24 4 160).

Courtesy of BMW OF NORTH AMERICA, INC.
Install the sealing cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten converter bolt

Replace screws (1).
Parts: Screws
Turn the engine in the direction of rotation using special tool 0 493 380 (11 6 480) on the vibration damper to tighten all 6 screws (1).

Tighten all 6 screws (1) of the torque converter using special tool 0 491 667 (24 1 110).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Torque converter to flywheel
M10 Replace screws.	Tightening torque	56 Nm

Lock the connector with the sealing sleeve

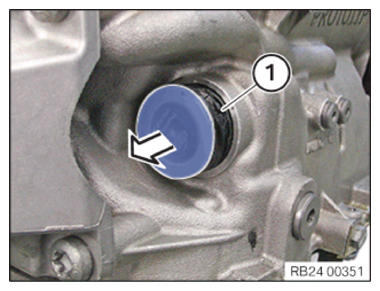

Remove the special tool 0 494 213 (24 2 390) in arrow direction from the sealing sleeve.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Notes on mechatronics are a fundamental requirement for these repair instructions and must be complied with at all times.
For ADDITIONAL INFORMATION see: 24 34... Notes on mechatronics (GA8HP50Z/GA8HP51Z/GA8HP75Z/GA8)

Courtesy of BMW OF NORTH AMERICA, INC.
Slide the connector (1) on and turn it to lock.

CAUTION: Materials harmful to health.
Contact with fluids harmful to health!

Note and follow safety instructions on containers.
Conduct all work in appropriate personal protective equipment only.

NOTE: RISK OF DAMAGE
Damage to the automatic transmission after removal of the mechatronics.
Serious damage to the automatic transmission due to non-compliance with the following tasks:

Load specific data status with the diagnostic system using an appropriate scan tool.
Use only approved TRANSMISSION OIL .
After completion of repair work, check the transmission OIL LEVEL .

NOTE: RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
Read and comply with user information on using the associated special tool 12 7 060.
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information see: 61 35... NOTES on ESD (electrostatic discharge) protection

Tighten transmission screws

Tighten the transmission bolts in sequence (1) to (9).

TIGHTENING TORQUES SPECIFICATION

Transmission to engine
M8	Tightening torque	19 Nm
M12	Tightening torque	66 Nm

Fig 1: Transmission Bolts Tightening Sequence - Models (530i xDrive 2017-2022, 540i xDrive 2017-2022)

Courtesy of BMW OF NORTH AMERICA, INC.

Connecting the connector with the VTG control unit

Connect the connector (1) to the VTG control unit for the longitudinal torque distribution (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Install the ground strap

Install the ground strap (2).

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Ground strap to transmission or body
M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing transmission cross member.

Install the transmission cross member.

Tighten down screws (2).

TIGHTENING TORQUES SPECIFICATION

Transmission cross member to body
M8	Tightening torque	19 Nm

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Transmission cross member to rubber mounts
M12	Tightening torque	68 Nm

Remove the transmission jack

Release the luggage strap (1) from the transmission.
Remove the special tools 0 495 498 (23 4 050) and 2 219 012 from the transmission.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Fasten the (partially removed) PROP SHAFT
Install the RETAINING PLATES .
Install the HEAT SHIELDS
Install the complete EXHAUST SYSTEM .
If installed: install the right and left TORSION STRUT where required.
Install the tunnel connecting SUPPORTS .
Reconnect all battery GROUND LEADS .
Check/top up the automatic transmission OIL LEVEL .
Install rear UNDERBODY PROTECTION .
Install the transmission side UNDERBODY PLANKING .
If the active stabilizer is installed: install fan COWL .
