Remove rear window

NOTE: TECHNICAL INFORMATION
Perform window removal using the "spider".
For additional information see: 51 31... Window glass removal using "SPIDER"

NOTE: TECHNICAL INFORMATION
The following procedure forms the basis for these repair instructions and must be observed without fail.
For more information see: 51 31... GENERAL PROCEDURE for disassembly/installation of bonded window glass

Preliminary works

Remove the rear left and right water channel TRIM PANEL .
Remove both c-pillar TRIM PANELS
Remove additional brake light TRIM
Remove additional BRAKE LIGHT .

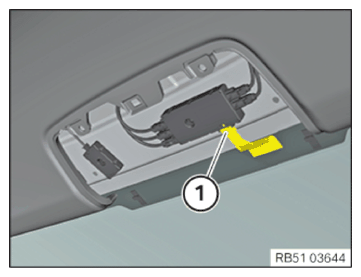

Unlock plug connection (1) and disconnect.
Secure cable to rear window with adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.

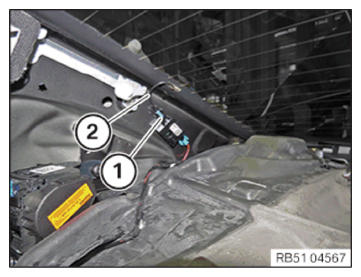

Loosen nut (1).
Secure cable (2) to the rear window.

Courtesy of BMW OF NORTH AMERICA, INC.

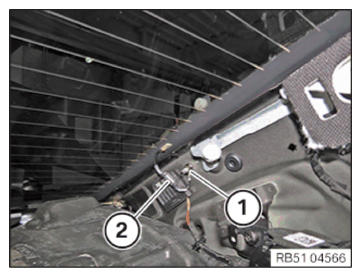

Unlock plug connection (1) and disconnect.
Secure cable (2) to rear window with adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.
Tape off body in area of piercing point with fabric adhesive tape.

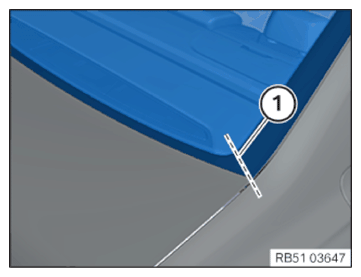

Push the thread (1) through the adhesive bead along the line from the inside.
Cut out the rear window with spider 2 357 248 .
Remove the rear window with the help of the special tool 2 184 377 .
Remove the adhesive bead from the body using special tool 0 410 436 and clean the adhesive area.

Courtesy of BMW OF NORTH AMERICA, INC.
