Checking cylinder head for watertightness
CAUTION:
Spring preload.
Injury hazard!
Injury hazard!
- The use of the specified special tool (tool) is mandatory.
- Carry out the described steps properly.
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.
Preliminary work
- Refer to REMOVING THE EXHAUST TURBOCHARGER (CYLINDER HEAD REMOVED) .
- Refer to MOUNTING THE CYLINDER HEAD ON THE ASSEMBLY JIG .
- Refer to ADJUSTING THE ECCENTRIC SHAFT TO THE MINIMUM LIFT (CYLINDER HEAD REMOVED) .
- Refer to REMOVING THE TORSION SPRINGS (CYLINDER HEAD REMOVED) .
- Refer to REMOVING ALL GATES .
- Refer to REMOVING ALL INTERMEDIATE LEVERS .
- Refer to REMOVING THE INTAKE CAMSHAFT (CYLINDER HEAD REMOVED) .
- Refer to REMOVE THE SERVOMOTOR FOR THE ECCENTRIC SHAFT (CYLINDER HEAD REMOVED) .
- Refer to REMOVING THE ECCENTRIC SHAFT (CYLINDER HEAD REMOVED) .
- Refer to REMOVING THE EXHAUST CAMSHAFT (CYLINDER HEAD REMOVED) .
- Refer to REMOVE ALL ROLLER CAM FOLLOWERS .
- Refer to REMOVING ALL HYDRAULIC VALVE CLEARANCE COMPENSATING ELEMENTS .
- Refer to REMOVE ALL VALVE SPRINGS .
- Refer to REMOVE VALVE STEM SEALS .
- Refer to REMOVE ALL VALVES .
- Get the set of special tools 2 361 215
ready.
- Have the special tool 2 456 190
ready.

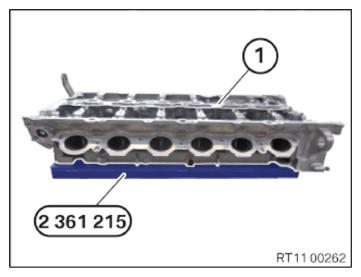

- Position the cylinder head (1) on the special tool 2 361 215
so that the rubber layer faces the cylinder head (1) and all water ducts at the cylinder head (1) are closed.

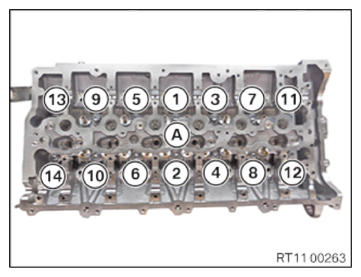

- Feed in the screws (1) to (14) on the cylinder head (A).
- Tighten screws in the order (1) to (14).
TIGHTENING TORQUES SPECIFICATION
| Cylinder head to special tool 2 361 215 | ||
| Tightening torque | 35 Nm | |

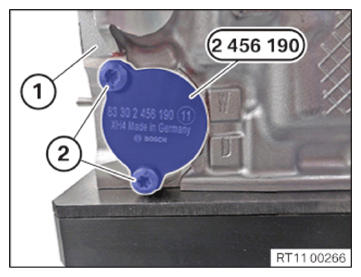

- Insert and install the special tool 2 456 190 at the cylinder head (2).
- Tighten down screws (2).
NOTE:
Use screws of the coolant line between the cylinder head and the coolant pump.
TIGHTENING TORQUES SPECIFICATION
| Special tool 2 456 190 to cylinder head | ||
| M6X20 | Tightening torque | 8 Nm |

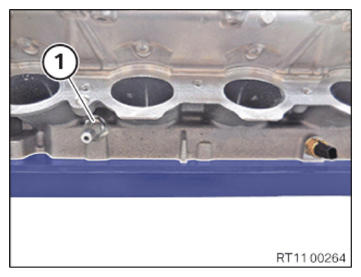

- Release venting connector (1).
- Feed out and remove venting connector (1).

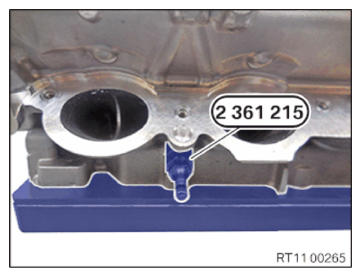

- Mount the valve of the special tool 2 361 215 on the cylinder head.
TIGHTENING TORQUES SPECIFICATION
| Venting connector/special tool to cylinder head | ||
| M10 | Tightening torque | 18 Nm |
Check
- Heat up the cylinder head.
TECHNICAL DATA - CYLINDER HEAD WATERTIGHTNESS SPECIFICATION
| Check for cylinder head watertightness | ||
| Temperature of the cylinder head | 60°C | |
- Connect compressed air.
TECHNICAL DATA - CYLINDER HEAD WATERTIGHTNESS SPECIFICATION
| Check for cylinder head watertightness | ||
| Testing pressure | max. 3.0 bar | |
- Check the cylinder head in for tightness in a water bath.
Result
» Air bubbles develop.
Measure
- Check the cylinder head for damage at the point of exit of the air bubbles.
Measure
- Repair or replace cylinder head.
TIGHTENING TORQUES SPECIFICATION
| Venting connector/special tool to cylinder head | ||
| M10 | Tightening torque | 18 Nm |
- Loosen screws (2).
- Guide out and remove the special tool 2 456 190
from the cylinder head (2).
- Release screws in the sequence (14) to (1) from the cylinder head (A).
- Feed out and remove screws (14) to (1).
- Feed out and remove cylinder head (1) from the special tool 2 361 215 .
