Fitting the door seal on the rear door

• Hang door seal (1) over the rear door with the open lip facing inwards.
• Position the sealing joint in area (A).
• Bond door seal (1) as follows:
  • Gradually pull off protective film
  • Align door seal (1) according to the specified dimensions (X) or the templates and press on it lightly
  • Check the position of door seal (1) and, if necessary, correct it
  • Do not overstretch or compress door seal (1) when positioning it
  • Maximum permissible continuity of the door seal (1) when positioning it 30 mm
  • Always apply pressure perpendicular to the bonding surface to affix door seal (1)
  • Affix door seal (1) with firm thumb pressure

  Courtesy of BMW OF NORTH AMERICA, INC.

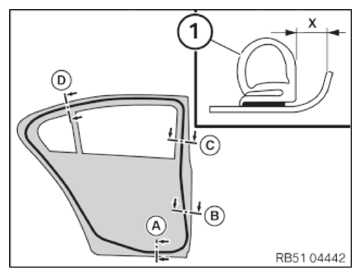

  Area	Dimension x
  A	13 mm
  B	6 mm
  C	5.5 mm
  D	4 mm

• Create a sealing joint in area (A) and shorten door seal (1) accordingly as needed.

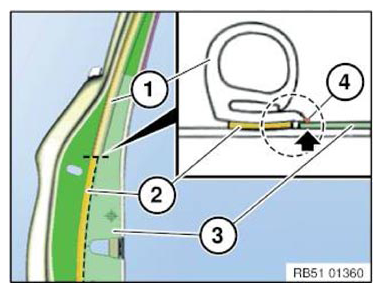

• Position door seal (1) along templates (3):

  The edge of door seal (1) is flush with mark (4) on template (3).

  1. Door seal
  2. Adhesive strip of the door seal
  3. Template
  4. Mark for the door seal

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install the inside rear window frame COVER .
• Install rear door TRIM PANEL .
• Attach the door handle COVER .
