Install the rear brake disc

• If an arrow 1 is engraved on the brake disk, it must point in the driving direction!

  In this case, the left and right brake discs are different!

  Courtesy of BMW OF NORTH AMERICA, INC.

• Thoroughly clean the contact surface of the wheel hub and remove traces of corrosion if necessary.

  Irregularities in the contact surface can cause distortion in the brake disc!

• Mount brake disc (2).
• Position and tighten the screw (1).
• Replace screw.

  Parts:  Screw

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Brake disc to rear wheel hub
  M8 Replace screw.	Tightening torque	16 Nm

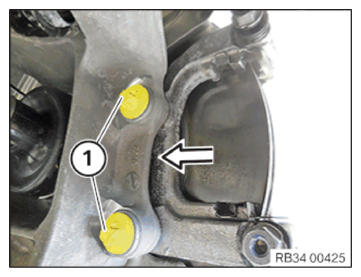

• Mount brake anchor plate.
• Insert screws (1) and tighten them.
• Replace screws.

  Parts:  screw

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Grease BRAKE PADS , brake anchor plate and brake caliper with brake pad paste.
• Install rear BRAKE PADS .
• Install the rear brake pad WEAR SENSOR .
• Install the left and right rear WHEEL .
• START-UP OR BEDDING IN new brake pads and discs (rear brake).
