Prepare the mobile table lift

WARNING: Car may slip off the vehicle hoist where components are supported.
Danger! Immobilization period-threatening injuries!

Secure the vehicle hoist against lowering and lifting.

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: RAISING THE VEHICLE USING A VEHICLE LIFT .

WARNING: Car may slip off the vehicle hoist if the weight is distributed unevenly.
Danger! Immobilization period-threatening injuries!

Ensure there is a specific weight compensation on the car.

Preliminary work

Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
Refer to REMOVING THE COVER ON LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
Refer to REMOVING THE MOUNT OF THE HOOD SEAL .
Refer to REMOVING THE FRONT LEFT AND RIGHT WHEELS .
Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
Refer to REMOVING THE REAR SECTION OF THE WHEEL ARCH COVER ON THE FRONT LEFT AND RIGHT .
Refer to REMOVING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
Refer to REMOVING THE REINFORCEMENT STRUT FROM THE ENGINE MOUNT ON THE LEFT AND RIGHT .
Refer to DETACHING THE WIRING HARNESS OF THE EPS FROM THE FRONT AXLE SUPPORT .
Refer to REMOVING LEFT AND RIGHT BRAKE VENTILATION DUCT .
Refer to REMOVING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
Refer to IF INSTALLED: REMOVING THE SILENCER OF THE STATIONARY HEATING .
Refer to LOOSENING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT FROM THE ANTI-ROLL BAR .
Refer to RELEASING THE FRONT LEFT AND RIGHT BRAKE CALIPERS .
Refer to DETACHING THE CABLE OF THE WHEEL RPM SENSOR ON THE LEFT AND RIGHT .
Refer to IF INSTALLED: RELEASE LINE FOR THE RIGHT AND LEFT VERTICAL ACCELERATION SENSORS .
Refer to IF INSTALLED: DISCONNECTING THE PLUG CONNECTIONS OF THE ACTIVE STABILIZER .
Refer to REMOVING THE UNIVERSAL JOINT ON THE STEERING GEAR .
Refer to DETACHING COOLANT HOSES FROM THE FRONT AXLE SUPPORT .

Mobile table lift

Courtesy of BMW OF NORTH AMERICA, INC.

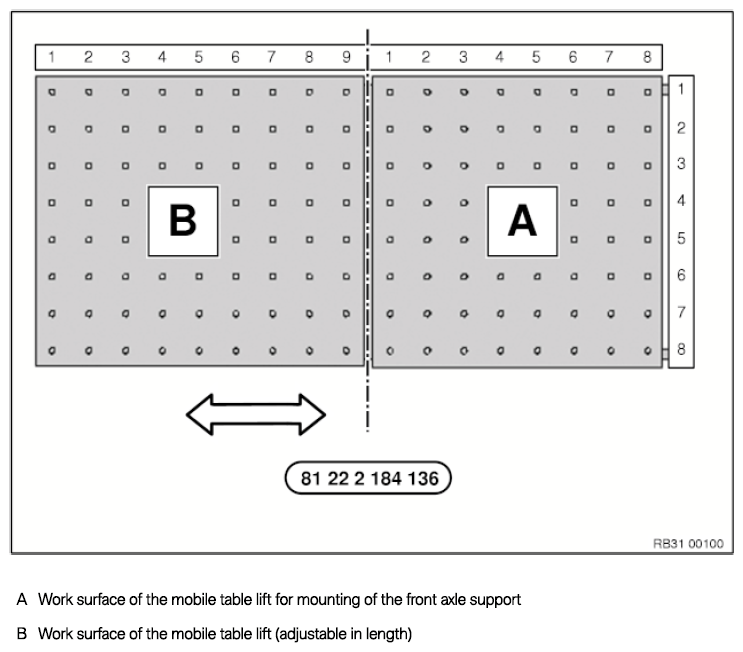

Stage the mobile table lift 2 184 136.

Courtesy of BMW OF NORTH AMERICA, INC.

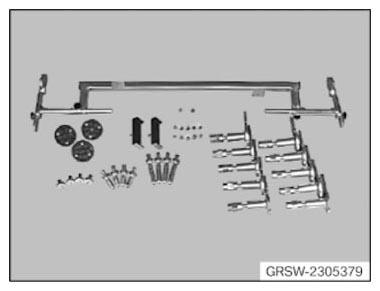

Place the mounting element from the set of special tools 2 305 379 ready.

Courtesy of BMW OF NORTH AMERICA, INC.

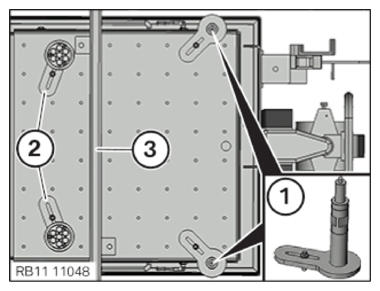

Position the mounting elements (1) with the mounts (50) on the work surface (A) of the mobile lifting table for the front subframe at the coordinates 7/1 and 7/8.
Position the mounting elements (2) with the mounts (80) on the work surface (A) of the mobile lifting table for the front subframe at the coordinates 2/2 and 2/7.
Position the swivel bearing stand (3) on the work surface (A) of mobile lifting table at the coordinates 3/1 and 4/8.

Courtesy of BMW OF NORTH AMERICA, INC.

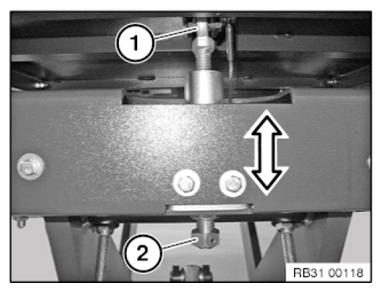

Adjust the inclination of the lifting table (1) with the adjustment screw (2) until the bubble level of the lifting table (1) displays the correct position.

Courtesy of BMW OF NORTH AMERICA, INC.
