Tighten the bolts on the front axle support

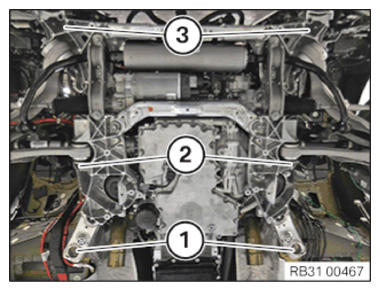

- Replace screws (1) to (3).
Parts: screw
- Tighten down screws (3).TIGHTENING TORQUES SPECIFICATION
Front axle carrier to body, front M12
Replace screws.Joining torque 108 Nm Angle of rotation 45° - Tighten down screws (2).TIGHTENING TORQUES SPECIFICATION
Front axle support to center of body M12
Replace screws.Joining torque 108 Nm Angle of rotation 45° - Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Front axle carrier to body, rear M14
Replace screws.Joining torque 108 Nm Angle of rotation 45° NOTE: Perform the steps on the right and left side. - Replace screws (1).
Parts: screw
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Bottom bumper bracket on the front subframe. | ||
| M8x100 Replace screws. |
Tightening torque | 19 Nm |
Follow-up work
- Refer to FASTENING THE SPRING STRUT HOLDER ON THE LEFT AND RIGHT TO THE WISHBONE BELOW .
- Refer to SECURING THE WISHBONE ON THE TOP LEFT AND RIGHT ON THE SWIVEL BEARING .
- Refer to REMOVING THE MOBILE LIFTING TABLE .
- Refer to ATTACHING COOLANT HOSES TO FRONT SUBFRAME .
- Refer to ATTACHING THE UNIVERSAL JOINT TO STEERING GEAR .
- Refer to IF INSTALLED: CONNECTING THE CONNECTOR OF THE ACTIVE STABILIZER .
- Refer to CLIPPING THE BRAKE HOSES ON THE FRONT RIGHT AND LEFT .
- Refer to SECURING THE RIGHT AND LEFT OUTPUT SHAFTS ON THE WHEEL BEARING .
- Refer to SECURING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT TO THE ANTI-ROLL BAR .
- Refer to IF INSTALLED: INSTALLING THE SILENCER OF THE STATIONARY HEATING .
- Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
- Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
- Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
- Refer to INSTALLING THE REINFORCEMENT STRUT ON THE ENGINE MOUNT ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE THRUST FIELD .
- Refer to INSTALLING FRONT STIFFENING PLATE .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
