Installing the boot of the center bearing

• Apply an even coating of grease to longitudinal splines on propeller shaft.
• Push boot (1) onto the groove (2) and make sure it fits firmly.
  CONSUMABLE - LUBRICATING GREASE DESCRIPTION



  Lubricating grease Olistamoly 2 LN 584 LO

  100 g, Tube

  83 19 0 447 919

  Courtesy of BMW OF NORTH AMERICA, INC.

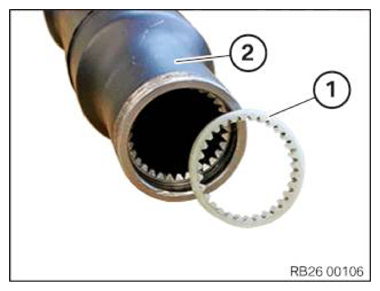

• If applicable, insert a new clamping ring (1) into the front propeller shaft (2).

  Parts:  Clamping ring

  Courtesy of BMW OF NORTH AMERICA, INC.

• Push the front propeller shaft (3) according to the marking you have made onto the longitudinal splines of the rear propeller shaft (4).

  The marks must be aligned (arrows).

• Push boot (1) onto the groove (2) and make sure it fits firmly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Push the juncture shaft together in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Completely install the PROP SHAFT  (plug-in - rear flexible disc).
• Install the RETAINING PLATES .
• Install the HEAT SHIELDS .
• If installed: install the right, and on the left TORSION STRUT where required.
• Install the CONNECTING SUPPORTS on the tunnel.
• Install the UNDERBODY PLANKING of the transmission on the side.
• Install rear UNDERBODY PROTECTION .
