Removing the positive battery cable from the alternator to the auxiliary terminal for jump starting
WARNING:
Working on 12 V electrical system.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
NOTE:
RISK OF DAMAGE
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS).
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults.
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS).
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults.
- Detach battery terminal from battery pole by carefully shifting to and fro. Do not pry off using a tool.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING THE COWL COVER .
- Refer to REMOVING TRAILING LINK AT SPRING BOLT .
- Refer to REMOVING THE COWL UPPER PART IN THE CENTER .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE DME CONTROL UNIT (540i 2017-2020, 540i xDrive 2017-2020) , or REMOVING THE DME CONTROL UNIT (540i 2021-2022, 540i xDrive 2021-2022) .
- Refer to REMOVING THE INTEGRATED POWER SUPPLY MODULE (PDM) (540i 2017-2020, 540i xDrive 2017-2020) , or REMOVING THE INTEGRATED POWER SUPPLY MODULE (PDM) (540i 2021-2022, 540i xDrive 2021-2022) .
- Removing control unit bracket. Refer to 12 90 E-BOX .

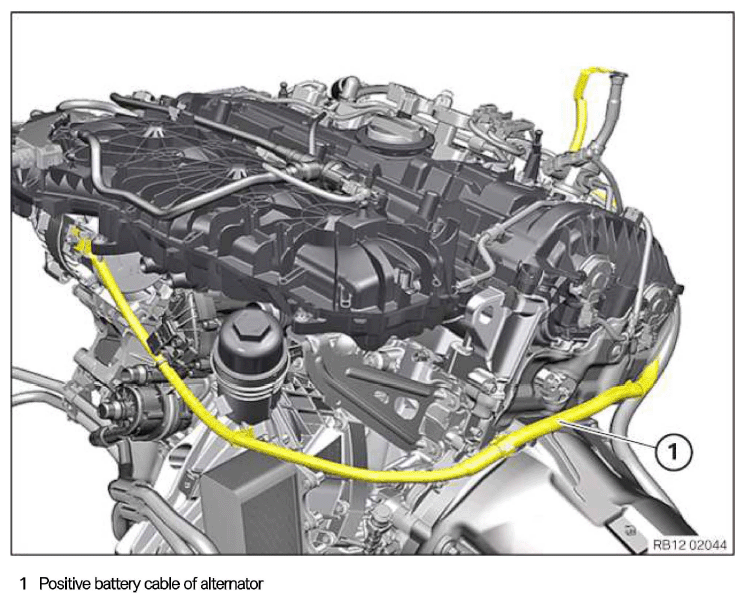

Positive battery cable of alternator
WARNING:
Working on 12 V electrical system.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
- Unlock lock (1).
- Guide and remove cover (2) in arrow direction.

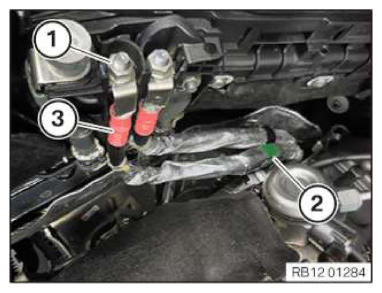

- Loosen nut (1).
- Loosen clamp (2).
- Thread out positive battery cable (3) and set it aside.

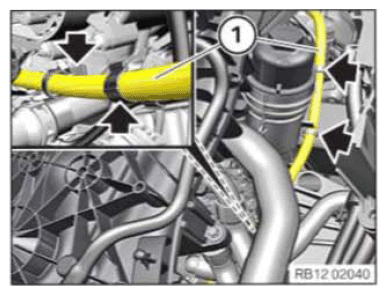

- Release the positive battery cable (1) from the clamp (arrow) and set it aside.
- Release the holder (arrows).
- Thread out positive battery cable (1) and set it aside.
- Loosen nut (1).
- Thread out positive battery cable (2) and set it aside.

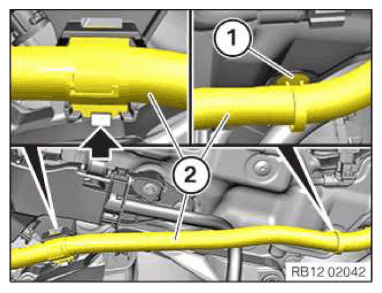

- Loosen clamp (1).
- Unlock the lock (arrow) and thread out the positive battery cable (2) and set it aside.

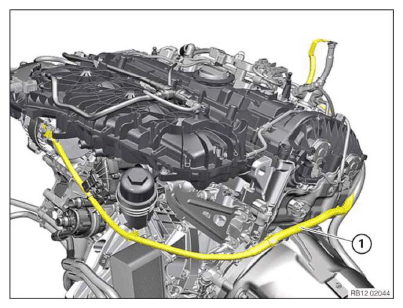

- Remove positive battery cable (1) and remove.
