Installing the upper left pressure line
- Version with S1DFA:

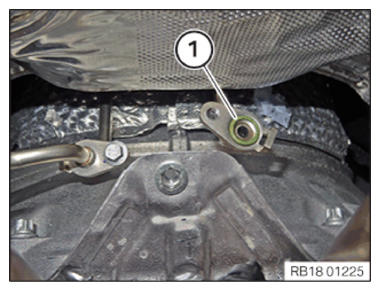

Replace sealing ring (1).
Parts: Sealing ring
Position sealing ring (1).
NOTE: For a better overview the removed condition is shown here. - Version with S1DFA

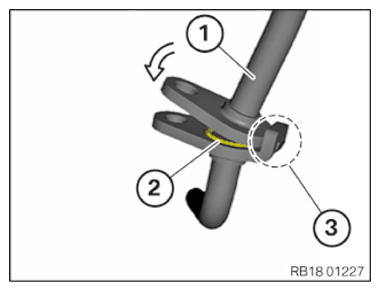

Position sealing ring (2).
Position the pressure line at the top of cylinder bank 2 (1) in mounting eye (3) and tilt it in the arrow direction towards the center of vehicle.

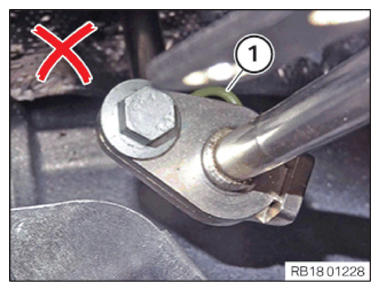

- Check the position of sealing ring (1) and, if necessary, correct it.
The sealing ring must not have slipped.
- Version with S1DFA:

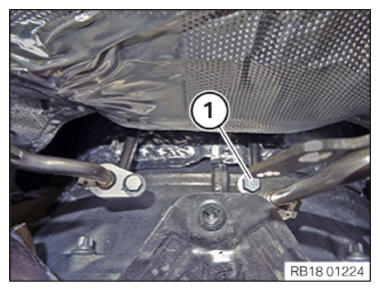

Tighten the screw in area (1).
Tightening torques
Pressure line lug to the lateral side of the heat shield M6x16 screw Tightening torque 10 Nm
Follow-up work
- Refer to INSTALL RIGHT HEAT SHIELD .
- Refer to INSTALL LEFT HEAT SHIELD .
- Refer to INSTALLING THE GASOLINE PARTICULATE FILTER OR BOTTOM CATALYTIC CONVERTER FOR CYLINDERS 1 THROUGH 4 .
- Refer to INSTALLING THE GASOLINE PARTICULATE FILTER OR BOTTOM CATALYTIC CONVERTER FOR CYLINDERS 5 THROUGH 8 .
- Refer to INSTALL EXHAUST SYSTEM .
- Refer to INSTALL THE CONNECTING SUPPORTS ON THE TUNNEL .
- Refer to INSTALL THE THRUST FIELD .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
- Refer to INSTALL THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to RELEASING THE HEAT SHIELD .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALL TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALL LEFT AND RIGHT WIPER ARM .
- Refer to INSTALL THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALL THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALL HEAT SHIELD, TOP .
- Refer to PARTLY INSTALLING THE RIGHT LAMBDA OXYGEN SENSOR .
- Refer to PARTIALLY INSTALLING THE LEFT LAMBDA OXYGEN SENSOR .
- Refer to INSTALLING THE RETAINING BRIDGE IN VEHICLES WITH A GASOLINE PARTICULATE FILTER .
