Installing oil feed line on exhaust turbocharger cylinders 5 to 8

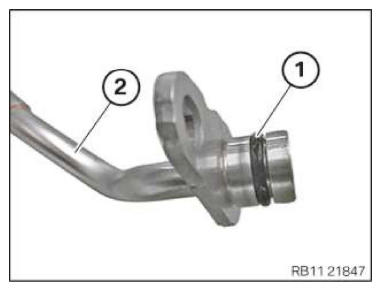

• Remove the O-ring (1) from the oil feed line (2).
• Replace O-ring (1).

  Parts: O-ring

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in and position the oil feed line (2) on the right of the crankcase.
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT HEAT SHIELD .
• Refer to INSTALLING ALTERNATOR .
• Refer to INSTALLING BOTH EXHAUST TURBOCHARGERS .
• Refer to ATTACHING THE CHARGE AIR COOLER .
• Refer to INSTALLING THE CLEAN AIR PIPE OF CYLINDER BANK 2 .
• Refer to CONNECTING THE LEFT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER .
• Refer to INSTALLING CLEAN AIR PIPE OF CYLINDER BANK 1 .
• Refer to CONNECTING THE RIGHT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER .
• Refer to CLOSING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT LEFT BOTTOM WHEEL ARCH COVER .
• Refer to INSTALLING THE FRONT BOTTOM RIGHT WHEEL ARCH COVER .
• Refer to INSTALLING DRIVE BELT .
• Refer to PARTIALLY FASTENING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING FRONT CROSS CONNECTION .
• Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING WITH THE RIGHT FRONT-END STRUT .
• Refer to INSTALLING LEFT INTAKE FILTER HOUSING WITH LEFT FRONT-END STRUT .
• Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
• Refer to INSTALLING THE CATALYTIC CONVERTER FOR CYLINDERS 5 TO 8 .
• Refer to RELEASING THE HEAT SHIELD .
• Refer to INSTALLING THE CENTER COWL UPPER PART .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING RIGHT HEAT SHIELD .
• Refer to INSTALLING LEFT HEAT SHIELD .
• Refer to INSTALLING HEAT SHIELD, TOP .
• Refer to INSTALLING THE RIGHT OXYGEN SENSOR MONITOR .
• Refer to INSTALLING THE LEFT OXYGEN SENSOR MONITOR .
• Refer to PARTIALLY INSTALLING THE RIGHT LAMBDA OXYGEN SENSOR .
• Refer to PARTIALLY INSTALLING THE LEFT LAMBDA OXYGEN SENSOR .
• Refer to INSTALLING THE RETAINING BRIDGE .
• Refer to INSTALLING EXHAUST SYSTEM .
• Refer to INSTALLING CENTER REAR UNDERSHIELD .
• Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
• Refer to CONNECTING NEGATIVE BATTERY CABLE .
• Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to CHECKING ENGINE OIL LEVEL .
