Install the oil feed line for the exhaust turbocharger

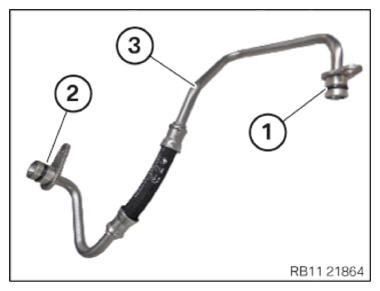

• Replace the seal rings (1) and (2) on the oil feed line (3) for the exhaust turbocharger with the special tool 0 496 714 (00 9 030)  .

  Parts:  Sealing rings

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install oil feed line (2) for the exhaust turbocharger.
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE COOLANT RETURN LINE FOR THE EXHAUST TURBOCHARGER .
• Refer to INSTALLING BOTTOM CLEAN AIR PIPE .
• Refer to INSTALLING CLEAN AIR PIPE, TOP .
• Refer to INSTALLING THE INTAKE FILTER HOUSING (TENSION STRUT REMOVED ON SHOCK TOWER) .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING FRONT CROSS CONNECTION .
• Refer to INSTALLING BOTH FRONT-END STRUTS .
• Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
• Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to CHECKING ENGINE OIL LEVEL .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
