Installing the flywheel

NOTE: TECHNICAL INFORMATION
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength.
The screw connection must be completed within 10 minutes as hardening begins after this period.

Courtesy of BMW OF NORTH AMERICA, INC.

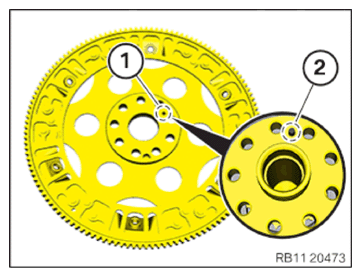

Make sure the centering hole (1) is on the centering pin (2) of the crankshaft.
Position flywheel.
Block the flywheel with special tools 0 494 129 (11 9 263) (1) and 0 493 938 (11 9 260) (2) and a transmission bolt M10x55 (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Replace screws (1) to (9).
Tighten the screws (1) to (9).

TIGHTENING TORQUES SPECIFICATION

Flywheel
Screw M12x1.5x28 Replace screws	Joining torque Angle of rotation	45 Nm 45°

Fig 1: Flywheel Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Release and remove the transmission bolt (3).
Remove special tools 0 494 129 (11 9 263) (1) and 0 493 938 (11 9 260) (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING AUTOMATIC TRANSMISSION (ALL-WHEEL DRIVE VEHICLE) (GA8HP75Z) .
Refer to INSTALLING FRONT PROPELLER SHAFT AT THE FRONT AXLE TRANSMISSION .
Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED)
Refer to INSTALL THE RETAINING PLATES .
Refer to INSTALLING THE HEAT SHIELDS .
Refer to INSTALL EXHAUST SYSTEM .
Refer to INSTALLING CENTER REAR UNDERSHIELD .
Refer to IF INSTALLED: INSTALL THE TORSION STRUT ON THE RIGHT, AND ON THE LEFT WHERE REQUIRED .
Refer to INSTALL THE CONNECTING SUPPORTS ON THE TUNNEL .
Refer to INSTALL THE THRUST FIELD .
Refer to CONNECTING NEGATIVE BATTERY CABLE .
Refer to CHECKING/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION .
Refer to INSTALL THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
Refer to INSTALL THE UNDERBODY PLANKING OF THE TRANSMISSION ON THE SIDE .
Refer to INSTALL REAR UNDERBODY PROTECTION .
