Remove roof aerial

Preliminary works

• Remove the empty roof-mounted AERIAL HOUSING .
• Remove both vanity MIRROR LIGHTS .
• Remove the left and right SUN VISORS
• Remove left and right sun visor COUNTER SUPPORTS .
• Remove the interior mirror COVERS .
• Remove the left and right a-pillar TRIM PANEL .
• Partially remove top left and right b-pillar TRIM PANELS
• Remove both c-pillar TRIM PANELS
• Remove all GRAB HANDLES .
• Remove rear interior roof LIGHT .
• Remove the right hands-free MICROPHONE .
• Remove the left hands-free MICROPHONE .
• Remove the roof FUNCTION CENTER (FZD).
• Lower ROOFLINER .
• Lower HEADLINING (with SA403 glass roof).

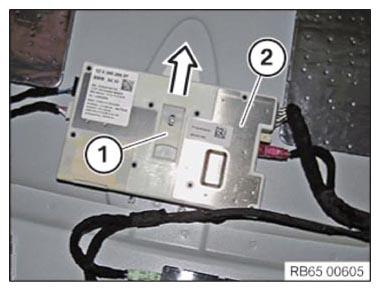

• Unlock the lock (1) downward.
• Slide TCB (Telematic Communication Box) (2) in the direction of arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

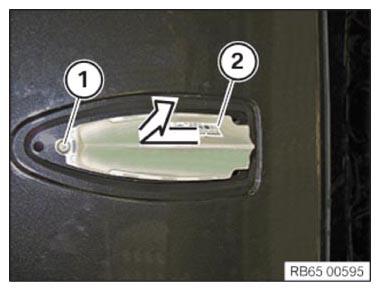

• Loosen screw (1).
• Remove the roof-mounted aerial (2) in the direction of the arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.
