Install front axle support

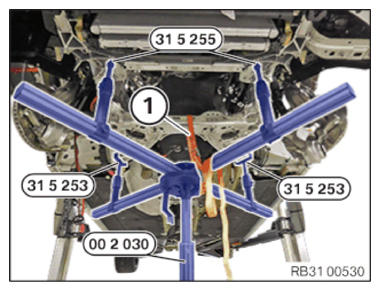

- Secure the front axle support (1) on the special tool with a luggage strap.

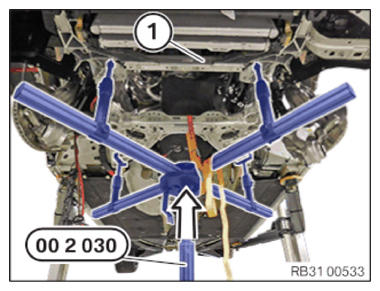

- Carefully lift the special tool 0 490 133 (00 2 030)
and position the front axle support (1) on the vehicle.
Tighten the screws on the left and right front axle support
- Replace screws (1).
Parts: screw
- Tighten the screws (1).TIGHTENING TORQUES SPECIFICATION
Front axle carrier to body, front M12
Replace screws.Joining torque
108 Nm Angle of rotation
45° - Replace screws (2).
Parts: screw
- Tighten down screws (2).TIGHTENING TORQUES SPECIFICATION
Front axle support to center of body M12
Replace screws.Joining torque 108 Nm Angle of rotation 45° - Replace screws (3).
Parts: screw
- Tighten down screws (3).TIGHTENING TORQUES SPECIFICATION
Front axle carrier to body rear M14
Replace screws.Joining torque
108 Nm Angle of rotation
45° NOTE: Perform the steps on the right and left side. - Replace screws (1).
Parts: screw
- Tighten the screws (1).TIGHTENING TORQUES SPECIFICATION
Bottom bumper bracket on the front subframe. M8x100 Replace screws. Tightening torque
19 Nm - Remove the luggage strap (1).
- Lower the special tool 0 490 133 (00 2 030)
and put away.
Follow-up work
- Refer to ATTACHING COOLANT HOSES TO FRONT SUBFRAME .
- Refer to SECURING THE BOTTOM WISHBONE ON THE LEFT AND RIGHT TO THE FRONT SUBFRAME .
- Refer to SECURING THE TENSION STRUT ON THE LEFT AND RIGHT TO THE FRONT SUBFRAME .
- Refer to INSTALLING THE STEERING GEAR .
- Refer to INSTALLING THE ANTI-ROLL BAR .
- Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
- Refer to IF INSTALLED: INSTALLING THE SILENCER OF THE STATIONARY HEATING .
- Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
- Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
- Refer to INSTALLING THE REINFORCEMENT STRUT ON THE ENGINE MOUNT ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to INSTALLING THE LATERAL HOOD SEALS .
- Refer to INSTALLING THE MOUNT OF THE HOOD SEAL .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to PERFORMING CHASSIS ALIGNMENT CHECK .
