Install the acoustic cover for the oil sump
- Install the acoustic cover for the oil sump

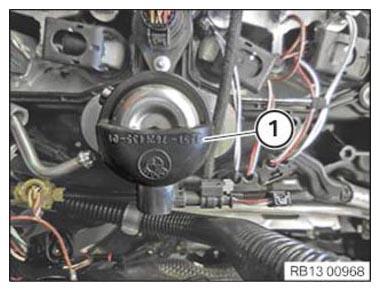

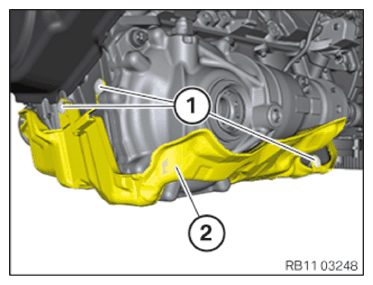

- Install the acoustic cover (2) toward the front and top and secure it with the expanding rivets (1).

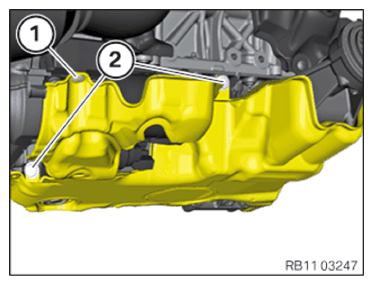

- Fasten all expanding rivets (2) and the Christmas tree clip (1).
- Thread in terminal 50 (4) and fasten it with the nut (5).TIGHTENING TORQUES SPECIFICATION
Terminal 50 to starter motor M6 Tightening torque 7 Nm - Insert the positive battery cable (1) and attach it correctly to the anti-twist lock (2).
- Tighten nut (3).TIGHTENING TORQUES SPECIFICATION
Battery positive lead to starter M8 Tightening torque 13.5 Nm - Attach terminal 50 (4) to the clip (6).
Follow-up work
- Refer to IF INSTALLED ON LEFT: POSITION SPRAY GUARD .
- Refer to RAISE FRONT AXLE SUPPORT .
- Refer to TIGHTEN THE BOLTS ON THE FRONT AXLE SUPPORT .
- Refer to SECURING THE SPRING STRUT HOLDER ON THE WISHBONE
- Refer to SECURE THE TOP WISHBONE ON THE SWIVEL BEARING .
- Refer to REMOVING THE MOBILE LIFTING TABLE .
- Refer to ATTACHING COOLANT HOSES TO FRONT SUBFRAME .
- Refer to SECURING THE RIGHT AND LEFT OUTPUT SHAFTS ON THE WHEEL BEARING
- Refer to IF INSTALLED: CONNECT THE CONNECTOR OF THE ACTIVE STABILIZER
- Refer to SECURING BRAKE HOSE, FRONT RIGHT AND LEFT .
- Refer to SECURING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT TO THE ANTI-ROLL BAR .
- Refer to IF INSTALLED: INSTALL THE SILENCER OF THE STATIONARY HEATING (ADDITIONAL WORK FRU NO.: 31 11 905) .
- Refer to IF INSTALLED ON LEFT: INSTALL SPRAY GUARD .
- Refer to SECURE THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
- Refer to IF INSTALLED: CONNECT THE VACUUM HOSE OF THE ENGINE MOUNT ON THE FRONT AXLE SUPPORT .
- Refer to LOWERING THE ENGINE AND REMOVE THE ENGINE BRIDGE .
- Refer to INSTALL THE ENGINE SUPPORT ARMS ON THE ENGINE MOUNTS ON THE LEFT AND THE RIGHT .
- Refer to REPLACING UNIVERSAL JOINT .
- Refer to INSTALL THE REINFORCEMENT STRUT ON THE ENGINE MOUNT ON THE LEFT AND RIGHT
- Refer to INSTALL THE THRUST FIELD .
- Refer to INSTALLING THE REAR THRUST FIELD .
- Refer to INSTALL FRONT STIFFENING PLATE .
- Refer to INSTALL REAR UNDERBODY PROTECTION .
- Refer to INSTALL THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to INSTALL THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
- Refer to INSTALL THE REAR SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to INSTALL THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT
- Refer to INSTALL LEFT AND RIGHT BRAKE VENTILATION DUCT .
- Refer to INSTALL THE FRONT LEFT AND RIGHT WHEELS .
- Refer to INSTALL THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALL THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP
- Refer to TAKE HOOD OUT OF THE SERVICE POSITION .
- Refer to INSTALL ACOUSTIC COVER .
- Refer to CONNECTING NEGATIVE BATTERY CABLE .
- Refer to RESETTING THE TIRE PRESSURE MONITOR .
