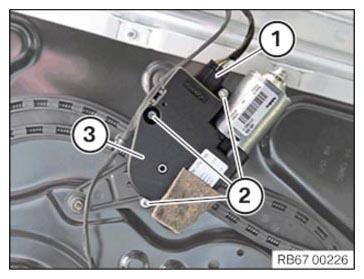

Remove the drive with the transmission for the rear slide/tilt sunroof
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave electrical components in original packaging until just before they are installed. Use the original packaging only for any return shipments. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 127 060.
- Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: 61 35... NOTES for ESD protection (electrostatic discharge)
NOTE:
TECHNICAL INFORMATION
The following procedure forms the basis for these repair instructions and must be observed without fail.
For more information see: 51 31... GENERAL PROCEDURE for disassembly/installation of bonded window glass
The following procedure forms the basis for these repair instructions and must be observed without fail.
For more information see: 51 31... GENERAL PROCEDURE for disassembly/installation of bonded window glass
Preliminary works
- Remove the left and right a-pillar trim PANEL .
- Remove left and right sun visor COUNTER SUPPORTS .
- Remove the left and right SUN VISORS
- Remove both vanity mirror LIGHTS .
- Remove the right hands-free MICROPHONE .
- Remove the left hands-free MICROPHONE .
- Remove the roof FUNCTION CENTER (FZD).
- Remove rear interior roof LIGHT .
- Partially remove top left and right b-pillar trim PANELS
- Remove both c-pillar trim PANELS
- Remove all GRAB HANDLES .
- Lower HEADLINING (with SA403 glass roof).
