Install the wiring harness section of the transmission wiring harness
Wiring harness section of transmission wiring harness
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.

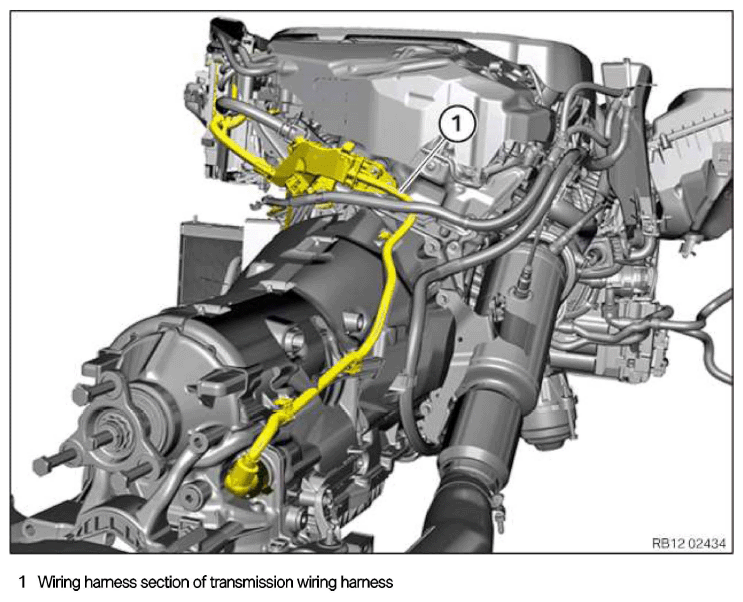

- Insert and install the wiring harness (1) for the transmission module.
- Feed in and install the wiring harness section of the transmission wiring harness.

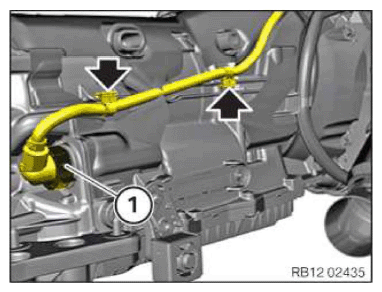

- Secure the clamps (arrows).
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
Fastening the transmission
- Lift the transmission cross member (1) with the transmission in the installation position.
- Tighten down screws (2).TIGHTENING TORQUES SPECIFICATION
Transmission cross member to body M8 Tightening torque 19 Nm - Loosening the luggage strap (1).
- Remove special tools 2 219 012 and 0 495 498 (23 4 050).
- Feed in and install the wiring harness section (1) of the transmission wiring harness.
- Secure the cable with the clamps (arrows).
- Secure the cable with the clamps (arrows).
- Connect the connector (1) to the starter and lock audibly.
- Feed In and Install the wiring harness section of the transmission wiring harness.
- Secure the cable with the clamps (arrows).
- Connect the connector (1) to the air conditioning compressor and lock audibly.
- Feed in and install the wiring harness section of the transmission wiring harness.
- Make sure the locking mechanism (2) engages audibly.
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Cable bracket on rear cylinder head/transmission M6x20 Tightening torque 8 Nm - Secure the clamps (arrows).
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
- Secure the clamps (arrows).
