Tighten the screws on the left and right front axle support

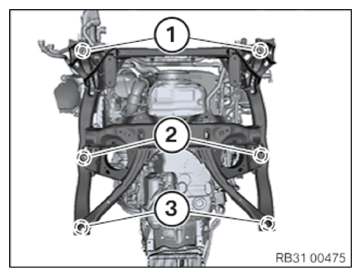

• Replace screws (1).

  Parts:  screw

• Tighten the screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Front axle carrier to body, front
  M12 Replace screws.	Joining torque	108 Nm
  	Angle of rotation	45°

• Replace screws (2).

  Parts:  screw

• Tighten down screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Front axle support to center of body
  M12 Replace screws.	Joining torque	108 Nm
  	Angle of rotation	45°

• Replace screws (3).

  Parts:  screw

• Tighten down screws (3).
  TIGHTENING TORQUES SPECIFICATION



  Front axle carrier to body, rear
  M14 Replace screws.	Joining torque	108 Nm
  	Angle of rotation	45°

  NOTE: Perform the steps on the right and left side.

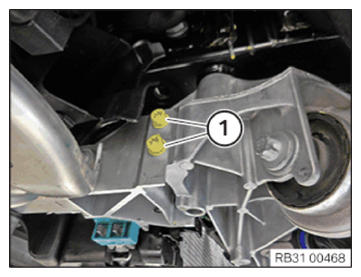

• Replace screws (1).

  Parts:  screw

• Tighten the screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Bottom bumper bracket on the front subframe.
  M8x100 Replace screws.	Tightening torque	19 Nm

Follow-up work

• Refer to SECURING THE SPRING STRUT ON THE WISHBONE ON THE BOTTOM LEFT AND RIGHT .
• Refer to SECURING THE WISHBONE ON THE TOP LEFT AND RIGHT ON THE SWIVEL BEARING .
• Refer to REMOVING THE MOBILE LIFTING TABLE .
• Refer to ATTACHING COOLANT HOSES TO FRONT SUBFRAME .
• Refer to ATTACHING THE UNIVERSAL JOINT TO STEERING GEAR .
• Refer to IF INSTALLED: CONNECTING THE CONNECTOR OF THE ACTIVE STABILIZER .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
• Refer to IF INSTALLED: SECURING THE LINE FOR THE VERTICAL ACCELERATION SENSOR ON THE RIGHT AND LEFT .
• Refer to ATTACHING THE CABLE OF THE WHEEL RPM SENSOR ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE BRAKE CALIPER AT THE FRONT LEFT AND RIGHT .
• Refer to SECURING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT TO THE ANTI-ROLL BAR .
• Refer to IF INSTALLED: INSTALLING THE SILENCER OF THE STATIONARY HEATING .
• Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
• Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
• Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
• Refer to INSTALLING THE REINFORCEMENT STRUT ON THE ENGINE MOUNT ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE REAR THRUST FIELD .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to TAKING ENGINE OUT OF INSTALLATION ORIENTATION .
• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to INSTALLING THE MOUNT OF THE HOOD SEAL .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
