Install front axle support

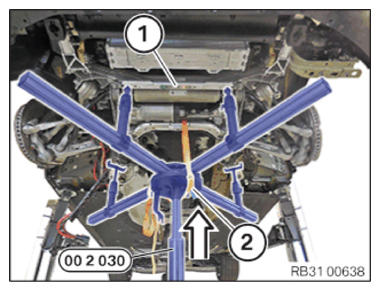

• Secure the front axle support (1) on the special tool with a luggage strap.

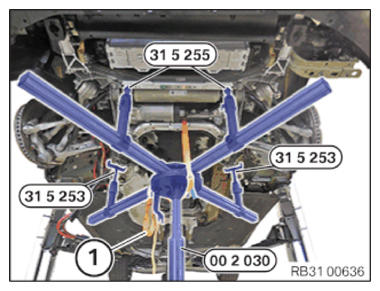

• Carefully lift the special tool 0 490 133 (00 2 030)  and position the front axle support (1) on the vehicle.

  Courtesy of BMW OF NORTH AMERICA, INC.

  If installed on left: Position spray guard

• Position spray guard (1) on output shaft (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Tighten the bolts on the front axle support

• Replace screws (1) to (3).

  Parts:  screw

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Front axle carrier to body, front
  M12 Replace screws.	Joining torque	108 Nm
  	Angle of rotation	45°

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Front axle support to center of body
  M12 Replace screws.	Joining torque	108 Nm
  	Angle of rotation	45°

• Tighten down screws (3).
  TIGHTENING TORQUES SPECIFICATION



  Front axle carrier to body, rear
  M14 Replace screws.	Joining torque	108 Nm
  	Angle of rotation	45°

  NOTE: Perform the steps on the right and left side.
• Replace screws (1).

  Parts:  screw

• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Bottom bumper bracket on the front subframe.
  M8x100 Replace screws.	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove the luggage strap (1).
• Lower the special tool 0 490 133 (00 2 030)  and put away.

  Courtesy of BMW OF NORTH AMERICA, INC.

  If installed on left: Install spray guard

• Position spray guard (2) on front axle support.
• Position screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Splash guard on front axle support
  M6	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten screws (1) of spray guard (2).

Courtesy of BMW OF NORTH AMERICA, INC.
