Installing the thermostat on the transmission oil lines

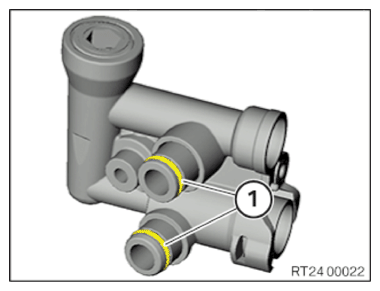

- Replace seals (1).
Parts: Seals

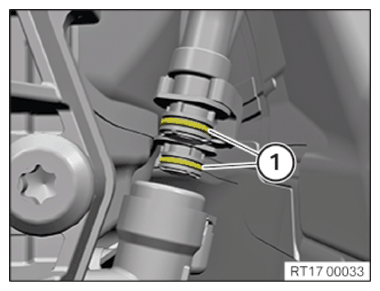

- Replace seals (1).
Parts: Seals
- Fit the thermostat (2) into the connections at the transmission.
- Tighten down screw (1).TIGHTENING TORQUES SPECIFICATION
Transmission oil lines to thermostat/automatic transmission M6x25 Tightening torque 8 Nm - Insert the transmission oil lines (2) into the thermostat (3).
- Tighten down screw (1).TIGHTENING TORQUES SPECIFICATION
Transmission oil lines to thermostat/automatic transmission M6x25 Tightening torque 8 Nm - Insert and install the holder (2).
- Tighten nuts (1).TIGHTENING TORQUES SPECIFICATION
Bracket for rear component cover Plastic nut Tightening torque 2.5 Nm
Follow-up work
- Refer to INSTALL THE TRANSFER BOX (ATC 13-1)
- Refer to CHECKING/TOPPING UP THE TRANSFER BOX OIL (ACTIVE TORQUE CONTROL 13-1)
- Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED)
- Refer to INSTALL THE RETAINING PLATES .
- Refer to INSTALLING TRANSMISSION CROSS MEMBER .
- Refer to INSTALLING THE HEAT SHIELDS
- Refer to INSTALL EXHAUST SYSTEM .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to CHECKING/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION .
- Refer to IF INSTALLED: INSTALL THE TORSION STRUT ON THE RIGHT, AND ON THE LEFT WHERE REQUIRED .
- Refer to INSTALLING CENTER REAR UNDERSHIELD .
- Refer to INSTALL THE CONNECTING SUPPORTS ON THE TUNNEL .
- Refer to INSTALL THE UNDERBODY PLANKING OF THE TRANSMISSION ON THE SIDE .
- Refer to INSTALL REAR UNDERBODY PROTECTION .
